Features:

` Built-in bias resistors R1 and R2 (typ. 47 k each)
` Simplification of circuit design
` Reduces number of components and board space.

Application

· Especially suitable for space reduction in interface and driver circuits
· Inverter circuit configurations without use of external resistors.

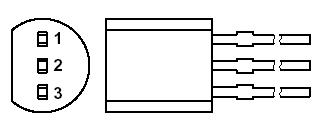

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage	open emitter	-	50	V
V_CEO	collector-emitter voltage	open base	-	50	V
V_EBO	emitter-base voltage	open collector	-	10	V
V_I	input voltage positive negative		- -	+40 -10	V V
I_O	output current (DC)		-	100	mA
I_CM	peak collector current		-	100	mA
P_tot	total power dissipation	T_amb 25 ; note 1	-	500	mW
T_stg	storage temperature		-65	+150
T_j	junction temperature		-	150
T_amb	operating ambient temperature		-65	+150

Description

NPN resistor-equipped transistor in a TO-92; SOT54 plastic package.

PNP complement: PDTC144ES.
