Product Details

Description



Features:

• EMI noise reduction version (overall peak level reduced by 5 to 10 dB)
• Pin compatible with mask ROM versions (except the VPP pin)
• Internal PROM : 60 KbytesNote 1 Programmable once only (ideal for small-scale production)
• Internal high-speed RAM : 1024 bytes
• Internal expansion RAM : 1024 bytesNote 2
• Buffer RAM : 32 bytes
• Operable in the same supply voltage range as mask ROM versions (VDD = 2.7 to 6.0 V)
• One of the QTOPTM Microcontrollers


Pinout

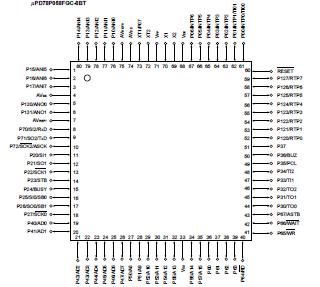

Connection Diagram


Specifications

Parameter Symbol Test Conditions Rating Unit
Supply voltage VDD   0.3 to +7.0 V
  VPP   0.3 to +13.5 V
  AVDD   0.3 to VDD + 0.3 V
  AVREF0   0.3 to VDD + 0.3 V
  AVREF1   0.3 to VDD + 0.3 V
  AVSS   0.3 to +0.3 V
Input voltage VI1 P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57,P64 to P67, P70 to P72, P120 0.3 to VDD + 0.3 V
  VI2 P60 to P63 N-ch open-drain 0.3 to +16 V
  VI3 A9 PROM programming mode 0.3 to +13.5 V
Output voltage VO   0.3 to VDD + 0.3 V
Analog input voltage VAN P10 to P17 Analog input pins AVSS 0.3 to AVREF0 + 0.3 V
Output current, high IOH Per pin 10 mA
    Total for P01 to P06, P30 to P37, P56, P57,P60 to P67, P120 to P127 15 mA
    Total for P10 to P17, P20 to P27, P40 to P47,P50 to P55, P70 to P72, P130, P131 15 mA
Output current, low IOL Note Per pin peak value
r.m.s. value		 30
15		 mA
    Total for P50 to P55 peak value
r.m.s. value		 100
70		 mA
    Total for P56, P57, P60 to P63 peak value
r.m.s. value		 100
70		 mA
    Total for P10 to P17, P20 to P27, P40 to P47, P70 to P72,
P130, P131 peak value
r.m.s. value		 50
20		 mA
    Total for P01 to P06,
P30 to P37, P64 to P67,
P120 to P127 peak value
r.m.s. value		 50
20		 mA
Operating ambient temperature TA   40 to +85 °C
Storage temperature Tstg   65 to +150 °C
Note r.m.s. values should be calculated as follows: [r.m.s. value] = [peak value] x Ö Duty


Description

The mPD78P058F is an Electro Magnetic Interference (EMI) noise reduction version of the mPD78P058.
The mPD78P058F is a member of the mPD78058F Subseries of the 78K/0 Series, in which the on-chip mask ROM of the mPD78058F is replaced with one-time programmable (OTP) ROM.
Because PD78P058F can be programmed by users, it is suited for applications involving the small-scale production of many different products, and for rapid development and time-to-market of new products.
