PD784976A

Features: · Device availability· Ordering information· Product release schedule· Availability of related technical literature· Development environment specifications (for example, specifications for third-party tools andcomponents, host computers, power plugs, AC supply voltages, and so forth)·...

product image

PD784976A Picture
See larger image
SeekIC No. : 004457298 Detail

PD784976A: Features: · Device availability· Ordering information· Product release schedule· Availability of related technical literature· Development environment specifications (for example, specifications ...

PD784976A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PD784976A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·   Device availability
·   Ordering information
·   Product release schedule
·   Availability of related technical literature
·   Development environment specifications (for example, specifications for third-party tools and components, host computers, power plugs, AC supply voltages, and so forth)
·   Network requirements




Pinout

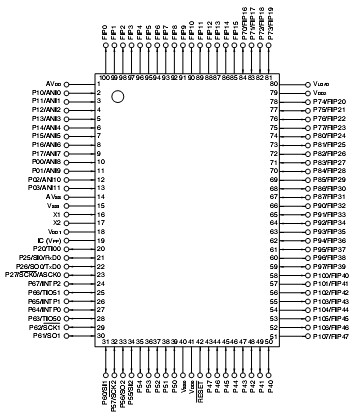

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Supply voltage VDD
-0.3 to +6.5
V
VPP PD78F4976A only
-0.3 to +10.5
V
AVLOAD
VDD - 40 to VDD + 0.3
V
AVDD
-0.3 to VDD + 0.3
V
AVSS
-0.3 to +0.3
V
Input voltage VI1 Ports 0, 1 (other than analog input pin), ports 2, 4, 6,
X1, X2, RESET
-0.3 to VDD + 0.3
V
VI2 Port 5 N-ch open drain
-0.3 to +13
V
N-ch open drain,
with mask option
(PD784975A only)
-0.3 to VDD + 0.3
V
VI3 Ports 7, 8, 9 P-ch open drain
VDD - 40 to VDD + 0.3
V
Analog input voltage VAN ANI0 to ANI11 (when used as analog input pin)
AVSS - 0.3 to AVDD + 0.3
V
Output voltage VO1 Total of all pins of ports 2, 4 to 6
-0.3 to VDD + 0.3
V
VOD Total of all pins of ports 7 to 10,
FIP0 to FIP15		 P-ch open drain
VDD - 40 to VDD + 0.3
V
Output current, low IOL Per pin (ports 2, 6)
10
mA
Per pin (ports 4, 5)
20
mA
Total of all pins of ports 2, 4, 5, 6
200
mA
Output current, high IOH Per pin (ports 2, 4, 6)
-10
mA
Total of all pins of ports 2, 4, 6
-30
mA
Per pin (FIP0 to FIP15)
-15
mA
Per pin (FIP16 to FIP47)
-5
mA
Total of all pins of FIP0 to FIP47
-225
mA
Total power
dissipation		 PT TA = -40 to +60
800
mW
TA = +85
600
mW
Operating ambient
temperature		 TA
-40 to +85
Storage temperature Tstg PD784975A
-65 to +150
PD78F4976A
-65 to +125


Caution Product quality may suffer if the absolute maximum rating is exceeded even momentarily for any parameter.  That is, the absolute maximum ratings are rated values at which the product is on the verge of suffering physical damage, and therefore the product must be used under conditions that ensure that the absolute maximum ratings are not exceeded.

Remarks
1. Unless specified otherwise, the characteristics of alternate-function pins are the same as those of port pins.
2. Refer to 14.7  Calculation of Total Power Dissipation for details of how to calculate the total power dissipation.
