PCI2030

PinoutSpecificationsSupply voltage range: VCC . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 0.5 V to 4.6 VVCCP . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .0.5 V to 6 VInput voltage range, VI: Standard . . . . . . . . . . . . . . . . .. . .. 0.5 V to VCC + 0.5 VOutp...

product image

PCI2030 Picture
SeekIC No. : 004456579 Detail

PCI2030: PinoutSpecificationsSupply voltage range: VCC . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 0.5 V to 4.6 VVCCP . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .0.5 V to 6...

floor Price/Ceiling Price

Part Number:
PCI2030
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

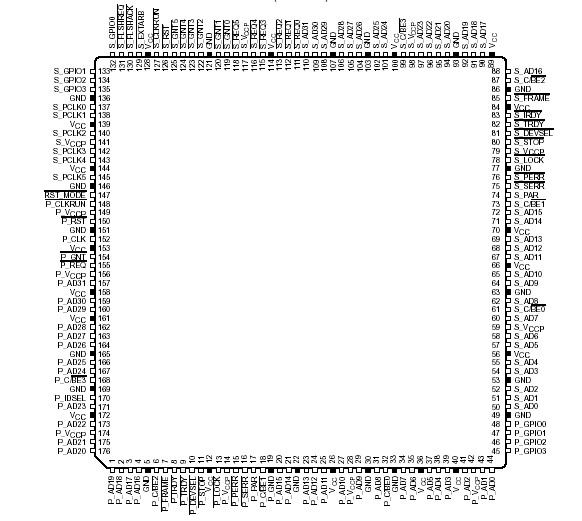

  Connection Diagram


Specifications

Supply voltage range: VCC  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 0.5 V to 4.6 V
                                   VCCP . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 0.5 V to 6 V
Input voltage range, VI: Standard  . . . . . . . . . . . . . . . . .. . .. 0.5 V to VCC + 0.5 V
Output voltage range, VO: Standard  . . . . . . . . . . . . . .  . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1)  . . . . . . . . . . . . .±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 2)  . . . . . . . . . .±20 mA
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . .. .65°C to 150°C
Virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C



Description

The TI PCI2030 PCI-to-PCI bridge provides a high-performance connection path between two peripheral component interconnect (PCI) buses. Transactions can occur between a master on one PCI bus and a target on another PCI bus. The bridge supports burst-mode of PCI2030 transfers to maximize data throughput, and the two bus traffic paths through the bridge act independently.

The PCI2030 bridge is compliant with the PCI Local Bus Specification 2.1, and can be used to overcome the electrical loading limit of ten devices per PCI bus of PCI2030 by creating hierarchical buses. Furthermore, add-in cards requiring multiple PCI devices can use the bridge to overcome the electrical loading limit of one PCI device per slot.

The PCI2030 bridge is also compliant with the PCI-to-PCI Bridge Specification 1.0, and implements many additional features that make it an ideal solution for bridging two PCI buses. PCI2030 can be configured for subtractive decoding, and negative decoding can be disabled on the secondary interface. Two extension windows are also included for special decoding purposes. The serial- and parallel-port addresses can also be programmed for positive decoding on the primary interface. The PCI2030 implements many other features, listed above, that add performance and flexibility.

An advanced CMOS PCI2030 process is utilized to achieve low system-power consumption while operating at PCI clock rates up to 33 MHz.
