PCD3755F

This data sheet details the specific properties of the PCD3755A, PCD3755E and PCD3755F. The devices differ in their Port and Power-on-reset configurations. References to 'PCD3755x' apply to all three types. PCD3755F are members of the PCD33xxA family of microcontrollers. The shared properties of the family are described in the "PCD33xxA family" data sheet, which should be read in conjunction with this publication.

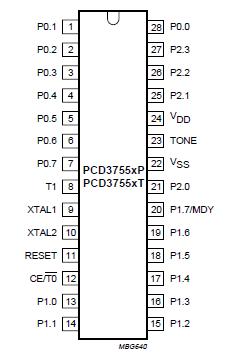

The PCD3755A, PCD3755E and PCD3755F are One-Time Programmable (OTP) microcontrollers designed primarily for telephony applications.They include an on-chip generator for dual tone multifrequency (DTMF), modem and musical tones. In addition to dialling, generated frequencies can be made available as square waves (P1.7/MDY) for melody generation, providing ringer operation.

The PCD3755A, PCD3755E and PCD3755F also incorporate 128 bytes of EEPROM. The EEPROM can be used for storing telephone numbers, particularly for implementing redial functions.

The Power-on-reset circuitry is extra accurate to accommodate parallel telephones and fax equipment. The instruction set of PCD3755F is similar to that of the MAB8048 and is a sub-set of that listed in the "PCD33xxA family" data sheet.
