Product Details

Description



Features:

` 8-bit CPU, RAM and I/O
` 4.5 kbytes OTP memory; 224 bytes RAM
` 32 kHz adjustable crystal oscillator for real-time clock
` Over 100 instructions (based on MAB8048) all of or 2 cycles
` 16 quasi-bidirectional I/O port lines
` 8-bit programmable Timer/event counter 1
` Two 16-bit counters with count inputs pins
` 2 single-level vectored interrupts:
external; peripheral Counters 1 and 2; RTC alarm
8-bit programmable Timer/event counter 1
` Two test inputs, one of which also serves as the external nterrupt input
` Stop and Idle modes for power saving
` Logic supply: 1.8 to 6 V
` CPU clock frequency: 1 to 16 MHz
` Operating temperature: -25 to +70 °C
` Manufactured in silicon gate CMOS process.

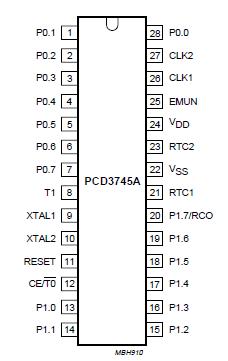

Pinout

Connection Diagram


Description

The PCD3745A is a microcontroller oriented towards ommunication and metering applications. It has .5 kbytes of One Time Programmable (OTP) memory, 24 bytes RAM and 16 I/O lines.

The PCD3745A also incorporates a low power Real-Time lock (RTC) and two low power 16-bit counters. The RTCPCD3745A  uns using a 32 kHz crystal oscillator and is register djustable. The RTC and the counters are able to operate n all microcontroller modes. The instruction set is based n that of the MAB8048 and is software compatible with he PCD33xxA family.

PCD3745A sheet details the specific properties of the CD3745A. The shared characteristics of the PCD33xxA amily of microcontrollers are described in the "Data andbook IC14; Section PCD33xxA Family", which should e read in conjunction with this publication.
