PCD3349A

Features: ` 8-bit CPU, ROM, RAM, I/O in a single 28-lead package` 4-kbyte ROM` 224-byte RAM` Over 100 instructions (based on MAB8048) all of 1 or 2 ycles` 20 quasi-bidirectional I/O port lines` 8-bit programmable Timer/event counter 1` 2 single-level vectored interrupts: external Timer/event count...

product image

PCD3349A Picture
See larger image
SeekIC No. : 004456354 Detail

PCD3349A: Features: ` 8-bit CPU, ROM, RAM, I/O in a single 28-lead package` 4-kbyte ROM` 224-byte RAM` Over 100 instructions (based on MAB8048) all of 1 or 2 ycles` 20 quasi-bidirectional I/O port lines` 8-bi...

PCD3349A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCD3349A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 8-bit CPU, ROM, RAM, I/O in a single 28-lead package
` 4-kbyte ROM
` 224-byte RAM
` Over 100 instructions (based on MAB8048) all of 1 or 2 ycles
` 20 quasi-bidirectional I/O port lines
` 8-bit programmable Timer/event counter 1
` 2 single-level vectored interrupts:
external
Timer/event counter 1
` Two test inputs, one of which also serves as the external nterrupt input
` DTMF tone generator
` Reference for supply and temperature-independent ONE output
` Filtering for low output distortion (CEPT compatible)
` Power-on-reset
` Stop and Idle modes
` Supply voltage: 1.8 to 6 V (DTMF TONE output from .5 V)
` Low standby voltage of 1 V
` Low Stop mode current of 1 mA (typical)
` Clock frequency: 1 to 16 MHz (3.58 MHz for DTMF uggested)
` Manufactured in silicon gate CMOS process.


Pinout

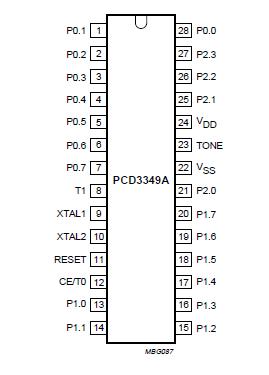

Connection Diagram


Description

The PCD3349A provides 4 kbytes of Program Memory, 224 bytes of RAM and 20 I/O lines. The PCD3349A is a microcontroller which has been designed primarily for telecom applications. It includes an on-chip dual tone multi-frequency (DTMF) generator. The instruction set is based on that of the MAB8048 and is software compatible with the PCD33xxA family.
