PCD3332-2

Features: ` Pulse, DTMF and VT 'mixed mode' dialling` 13 number repertory dial, up to 32 digits per number 10 one-touch redial or 3 one-touch plus 10 two-touch 250 digits maximum storage` Last number redial up to 32 digits` Repertory and redial memory integrity check (memory contents check)` Notep...

product image

PCD3332-2 Picture
See larger image
SeekIC No. : 004456349 Detail

PCD3332-2: Features: ` Pulse, DTMF and VT 'mixed mode' dialling` 13 number repertory dial, up to 32 digits per number 10 one-touch redial or 3 one-touch plus 10 two-touch 250 digits maximum storage` Last numbe...

PCD3332-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCD3332-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Pulse, DTMF and VT 'mixed mode' dialling
` 13 number repertory dial, up to 32 digits per number
10 one-touch redial or 3 one-touch plus 10 two-touch
250 digits maximum storage
` Last number redial up to 32 digits
` Repertory and redial memory integrity check (memory contents check)
` Notepad memory function
` Flash and Earth register recall
` Access pause generation and termination
` On-chip power-on reset
` Supports function keys as follows:
STORE: Program/Store
MRC: Memory Recall
FLASH: calibrated line-break pulse
LNR: Last Number Redial
PAUSE: insert access pause between stored digits
TONE: change from pulse to DTMF dialling (mixed mode)
VOL+/-: speaker/ringer volume control
10 dedicated memory keys
` Strap functions (diode options):
MLA: Memory Location Access selection
RDS: Enable/Disable ringer validation delay (PCD3332-2)
DOO: enable/disable transmission * or # (PCD3332-3/S)
F/E: register recall Flash or Earth
M/S: Mark-to-Space ratio selection (3 : 2 or 2 : 1)
APT: Access Pause Timing selection
TBT: Tone Burst Time selection
FTS: Flash Time Selection
P/T: Pulse or Tone (DTMF) mode selection
RMS: Ringer Melody Selection (PCD3332-2 and PCD3332-S)
RFS: Ringer input frequency range selection (19.5 to 57 Hz or 14.4 to 68 Hz) (PCD3332-3)
` Ringer tone generator
` Ringer-input frequency discriminator
` Ringer melody selection via keypad
` Volume control for loudspeaker phones (PCD3332-3)
` On-hook dialling/hands-free mode control (PCD3332-3)
` Pacifier tones.


Pinout

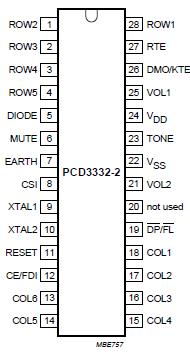

Connection Diagram




Description

The PCD3332-2, PCD3332-3 and PCD3332-S are mixed-mode multistandard repertory dialler/ringer ICs, fabricated in a low threshold voltage CMOS technology. Dial parameters of these ICs can be set by diode options to meet the specific requirements for various countries.

The on-chip tone generators of PCD3332-2 are used for DTMF dialling and ringer melody generation. A discriminator input enables the tone output only if a correct ringer frequency is applied. Repertory numbers of up to 32 digits can be stored, with maximum storage of 250 digits.
