PC87410

Features: ·Full·compatible with PCI specifications rev 2.0 (April,1993)·Programmable Base Address registers·Interfaces with the 32 bits PCI local bus to IDE drives·Support IDE PIO timing mode 0, 1, 2 of ANSI ATA pecifications·Support Mode 3 (11 MB/s) timing proposal on enhancedIDE (IDE-2 or ATA-2)...

product image

PC87410 Picture
See larger image
SeekIC No. : 004456155 Detail

PC87410: Features: ·Full·compatible with PCI specifications rev 2.0 (April,1993)·Programmable Base Address registers·Interfaces with the 32 bits PCI local bus to IDE drives·Support IDE PIO timing mode 0, 1, ...

PC87410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Full·compatible with PCI specifications rev 2.0 (April,1993)
·Programmable Base Address registers
·Interfaces with the 32 bits PCI local bus to IDE drives
·Support IDE PIO timing mode 0, 1, 2 of ANSI ATA pecifications
·Support Mode 3 (11 MB/s) timing proposal on enhancedIDE (IDE-2 or ATA-2) specifications
·Two IDE-2 channel supported (each channel supports 2 evices)
·Supports primar·IDE or secondar·IDE address
·16-Byte FIFO provide 4-level Posted Write and Read ahead buffers per channel for concurrent system operation
·Programmable command and recover·timing for reads and writes per channel
·Independent timings for command registers and data registers
·Slew rate controlled output directl·interface with IDE evices
·Supports either IRQ14/15 or INTAÝ/BÝ
·Hardware and Software chip enable/disable capability
·100 pin PQFP package, NO other glue logic neededand 12 mA transceivers are built in


Pinout

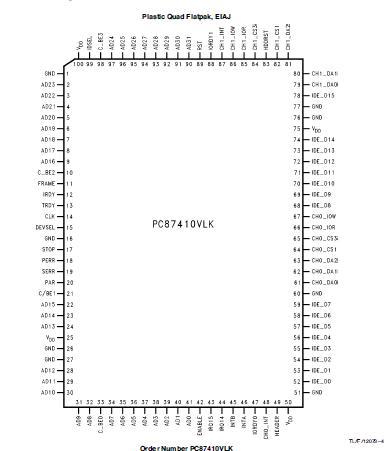

Connection Diagram


Specifications

Supply Voltage (VDD) ....... -0.5V to + 7.0V
Input Voltage (VI).......  -0.5 to VDD + 0.5V
Output Voltage (VO) ......-0.5 to VDD + 0.5V
Storage Temperature (TSTG) . -65°C to + 165°C
Power Dissipation (PD) ..............1W
Lead Temperature (TL)
(Soldering, 10 seconds) .......... +260°C


Description

The PCI-IDE Interface Controller is designed to interface the IDE drive directly onto the PCI bus. PC87410 provides write posting and read pre-fetches, allowing the CPU to run concurrently with IDE cycles. PC87410 connects IDE drIves ``gluelessly'' into the PCI bus and supports faster ATA devices using modes 1, 2 and 3 through PIO accesses. PC87410 supports dual IDE channels for up to four drives, and works seamlessly with the National Semiconductor's SuperI/OTM family of products. A full suite of software drives included with device are fully tested with DOS 5.0±6.x, Windows 3.x±4.x, Windows NT, OS/2 2.x, Novell Netware 3.1x±4.x, and SCO UNIX 3.x.
