PC87393F

Features: ` X-Bus Extension for read and write operations` LPC bus interface, based on Intel's LPC Interface Specification Rev. 1.01, February 1999 (supports CLKRUN and LPCPD signals) and Intel FWH transactions` PC99 and ACPI compliant` Serial IRQ support (15 options)` Interrupt Serializer (four P...

product image

PC87393F Picture
See larger image
SeekIC No. : 004456154 Detail

PC87393F: Features: ` X-Bus Extension for read and write operations` LPC bus interface, based on Intel's LPC Interface Specification Rev. 1.01, February 1999 (supports CLKRUN and LPCPD signals) and Intel FWH ...

PC87393F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87393F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` X-Bus Extension for read and write operations
` LPC bus interface, based on Intel's LPC Interface Specification Rev. 1.01, February 1999 (supports CLKRUN and LPCPD signals) and Intel FWH transactions
` PC99 and ACPI compliant
` Serial IRQ support (15 options)
` Interrupt Serializer (four Parallel IRQs to Serial IRQ)
` PPM for external FDD signal support
` MIDI interface compatible with MPU-401 UART mode
` Game port inputs for up to two joysticks
` Protection features, including GPIO lock and pin configuration lock
` 32 GPIO ports (16 standard, 16 with Assert IRQ/SMI)
` 5V tolerant and back-drive protected pins (except LPC bus pins)
` 100-pin TQFP Package

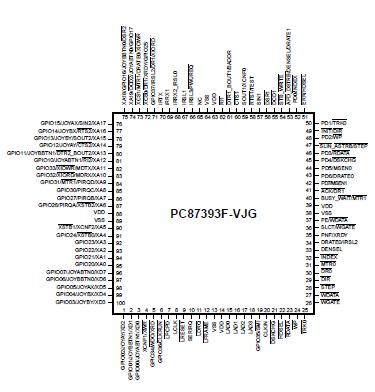

Pinout

Connection Diagram




Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
Vcc
Supply Voltage
-0.5
6.5
V
VI
Input Voltage

-0.5
VDD + 0.5
V
VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

National Semiconductor's PC8739x family of LPC SuperI/O devices is targeted for a wide range of portable applications. PC99 and ACPI compliant, the PC8739x family features an X-Bus Extension for read and write operations over the X-Bus, a full IEEE 1284 Parallel Port with a Parallel Port Multiplexer (PPM) for external Floppy Disk Drive (FDD) support, a Musical Instrument Digital Interface (MIDI) port, and a Game port. Like all National LPC SuperI/O devices, the PC8739x offers a single-chip solution to the most commonly used PC I/O peripherals.

The PC8739x family also incorporates: a Floppy Disk Controller (FDC), two enhanced Serial Ports (UARTs), one with Fast Infrared (FIR, IrDA 1.1 compliant), General-Purpose Input/Output (GPIO) support for a total of 32 ports, Interrupt Serializer for Parallel IRQs and an enhanced WATCHDOG ä timer.

The following features apply to the PC87393F. The feature lists for other PC8739x devices may differ. See the table on page 3 for a list of features for each device.
