PC87373

Features: ` Legacy modules: Parallel Port, Floppy Disk Controller (FDC), two Serial Ports, Keyboard and Mouse Controller (KBC), Game Port and MIDI Port` Glue functions to complement the South Bridge functionality` Fan Speed monitoring and control of three fans` VSB3-powered Power Management with 2...

product image

PC87373 Picture
See larger image
SeekIC No. : 004456148 Detail

PC87373: Features: ` Legacy modules: Parallel Port, Floppy Disk Controller (FDC), two Serial Ports, Keyboard and Mouse Controller (KBC), Game Port and MIDI Port` Glue functions to complement the South Bridge...

PC87373 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87373
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Legacy modules: Parallel Port, Floppy Disk Controller (FDC), two Serial Ports, Keyboard and Mouse Controller (KBC), Game Port and MIDI Port
` Glue functions to complement the South Bridge functionality
` Fan Speed monitoring and control of three fans
` VSB3-powered Power Management with 20 wake-up sources
` Controls three LED indicators
` 13 GPIO ports with a variety of wake-up options
` LPC interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997
` PC01 Revision 1.0 and Advanced Configuration and Power Interface (ACPI) Specification Revision 2.0 compliant
` 128-pin PQFP package

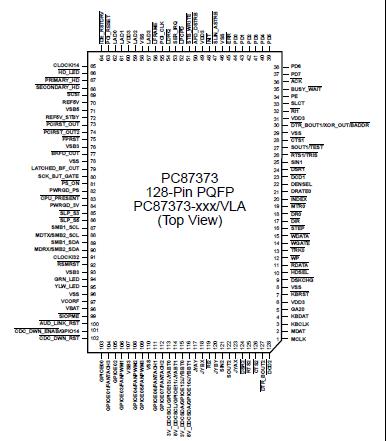

Pinout

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
VSUP
Supply Voltage1
−0.5
+4.1
V
VI
Input Voltage
All other pins
−0.5
5.5
V
PCI_CLK, LAD3-0, LFRAME,
PCI_RESET, SERIRQ, LPCPD
−0.5
VDD3 + 0.5
V
VO
Output Voltage
All other pins
−0.5
5.5
V
LAD3-0, LDRQ , SERIRQ
−0.5
VDD3 + 0.5
V
TSTG
Storage Temperature
−65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
1. VSUP is VDD3, VSB3.
2. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The National Semiconductor® PC87373 Advanced I/O product is a member of the PC8737x SuperI/O family. All PC8737x devices are highly integrated and are pin and software compatible, thus providing drop-in interchangeability and enabling a variety of assembly options using only a single motherboard and BIOS. PC87373 integration allows for a smaller system board size and saves on total system cost.

The PC87373 includes legacy SuperI/O functions, system glue functions, fan monitoring and control, commonly used functions such as GPIO, and ACPI-compliant Power Management support.

The PC87373 integrates miscellaneous analog and digital system glue functions to reduce the number of discrete components required. The host communicates with the functions integrated in the PC87373 device through an LPC Bus Interface.

The PC87373 Legacy functions are: two serial ports, a fully compliant IEEE 1284 Parallel Port, a Floppy Disk Controller
(FDC), a Keyboard/Mouse Controller (KBC), a Game Port and a MIDI Port. The Fan Speed Control and Monitor (FSCM) module allows the system to monitor and control three fans.

The PC87373 extended wake-up support complements the ACPI controller in the chipset. The System Wake-Up Control (SWC) module, powered by VSB3, supports a flexible wakeup mechanism.

There are 13 General-Purpose Input/Output (GPIO) ports; these allow system control and wake-up on system events.
