PC87365

Features: ` System Hardware Monitoring including:- Diode-based Temperature Sensor (TMS)- Voltage Level Monitor (VLM) with VID inputs` Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery` Protection fea...

product image

PC87365 Picture
See larger image
SeekIC No. : 004456145 Detail

PC87365: Features: ` System Hardware Monitoring including:- Diode-based Temperature Sensor (TMS)- Voltage Level Monitor (VLM) with VID inputs` Extended Wake-Up support, including legacy/ACPI power button sup...

PC87365 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87365
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` System Hardware Monitoring including:
- Diode-based Temperature Sensor (TMS)
- Voltage Level Monitor (VLM) with VID inputs
` Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery
` Protection features, including I/O access lock, chassis hood lock/unlock, chassis intrusion detection, GPIO lock and pin configuration lock
` Fan Speed Control and Monitor for three fans
` Serial IRQ support (15 options)
` Interrupt Serializer (11 Parallel IRQs to Serial IRQ)
` Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997
` ACCESS.bus Interface, SMbus® physical layer compatible
` 40 GPIO Ports (29 standard, including 15 with Assert IRQ/SMI/PWUREQs interrupts; 11 VSB powered)
` Blinking LEDs
` 128-pin PQFP Package


Pinout

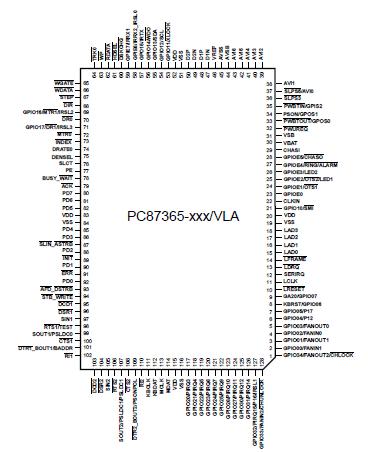

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
AVDD
Analog Supply Voltage
-0.5
TBM

VDD
Supply Voltage
-0.5
6.5
V
VI
Input Voltage

-0.5
VDD+ 0.5
V
   VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
Note 1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The PC87365, a member of National Semiconductor's 128- pin LPC SuperI/O family, features National's new System Hardware Monitoring capability. That is PC99 and ACPI compliant, and offers a single-chip solution to the most commonly used PC I/O peripherals.

System Hardware Monitoring PC87365 provides minimum power consumption and maximum operating efficiency within the system environment. PC87365 integrates National's Voltage Level Monitor (VLM) which monitors system voltages using 8-bit Analog to Digital (A/D) conversion, seven analog input channels and VREF input, and National's diode input Temperature Sensor for full, PC system thermal control.

The PC87365 also incorporates: Fan Speed Control and Monitor (FSCM) for three fans, extended wake-up support for a wide range of wake-up events, system design protection features, a Floppy Disk Controller (FDC), a Keyboard and Mouse Controller (KBC), ACCESS.bus® Interface (ACB), System Wake-Up Control (SWC), General-Purpose Input/ Output (GPIO) support for 40 ports, Interrupt Serializer for Parallel IRQs, an enhanced WATCHDOG Timer (WDT), a full IEEE 1284 Parallel Port and two enhanced Serial Ports
(UARTs), one with Infrared (IR) support.
