PC87364

Features: • Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery• Protection features, including I/O access lock, chassis hood lock/unlock, chassis intrusion detection, GPIO pin attribute lo...

product image

PC87364 Picture
See larger image
SeekIC No. : 004456144 Detail

PC87364: Features: • Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery• Protection features, inc...

PC87364 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87364
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery
• Protection features, including I/O access lock, chassis hood lock/unlock, chassis intrusion detection, GPIO pin attribute lock and pin configuration lock
• Fan Speed Control and Monitor for three fans
• Serial IRQ support (15 options)
• Interrupt Serializer (11 Parallel IRQs to Serial IRQ)
• Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997
• ACCESS.bus Interface, SMBus physical layer compatible l 51 GPIO Ports (39 standard, including 23 with Assert IRQ/SMI/PWUREQs interrupts; 12 VSB-powered)
• Blinking LEDs
• 128-pin PQFP Package


Pinout

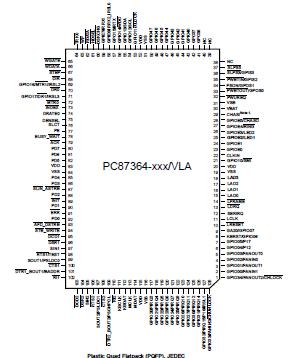

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
Vcc
Supply Voltage
-0.5
6.5
V
VI
Input Voltage

-0.5
VDD+ 0.5
V
   VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
Note 1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The PC87364, a member of National Semiconductor's 128- pin LPC SuperI/O family, introduces wake-up support for a wide range of wake-up events, and new hardware and sofware features to protect the system design. The PC87364 provides support for 51 GPIO ports, many with Assert IRQ/SMI/PWUREQ capability. PC87364 is PC99 and ACPI compliant, and offers a single-chip solution to the most commonly used PC I/O peripherals.

The PC87364 also incorporates: Fan Speed Control and Monitor (FSCM) for three fans, a Floppy Disk Controller (FDC), a Keyboard and Mouse Controller (KBC), a full IEEE 1284 Parallel Port, two enhanced Serial Ports (UARTs), one with Infrared (IR) support, an ACCESS.bus® Interface (ACB), System Wake-Up Control (SWC), General-Purpose Input/Output (GPIO) support for 51 ports, Interrupt Serializer ofPC87364 for Parallel IRQs and an enhanced WATCHDOGä timer.
