PC87363

Features: ` MIDI Port compatible with MPU-401 UART mode` Game Port inputs for up to two game devices` Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery` Protection features, including chassis intrusi...

product image

PC87363 Picture
See larger image
SeekIC No. : 004456143 Detail

PC87363: Features: ` MIDI Port compatible with MPU-401 UART mode` Game Port inputs for up to two game devices` Extended Wake-Up support, including legacy/ACPI power button support, direct power supply contro...

PC87363 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87363
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` MIDI Port compatible with MPU-401 UART mode
` Game Port inputs for up to two game devices
` Extended Wake-Up support, including legacy/ACPI power button support, direct power supply control in response to wake-up events, power-fail recovery
` Protection features, including chassis intrusion detection, GPIO lock and pin configuration lock
` Serial IRQ support (15 options)
` Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997
` Fan Speed Control and Monitor for two fans
` ACCESS.bus Interface, SMBus physical layer compatible
` 49 GPIO Ports (37 standard, including 23 with Assert IRQ/SMI/PWUREQs interrupts; 12 VSB-powered)
` Blinking LEDs
` 128-pin PQFP Package


Pinout

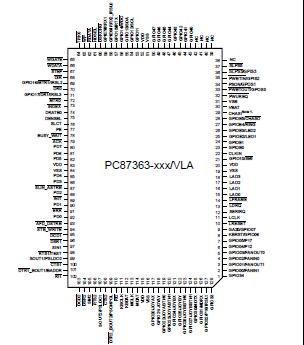

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
Vcc
Supply Voltage
-0.5
6.5
V
VI
Input Voltage

-0.5
VDD+ 0.5
V
   VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
Note 1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The PC87363, a member of National Semiconductor's 128- pin LPC SuperI/O family, introduces a Musical Instrument Digital Interface (MIDI) Port and Game Port inputs for up to two game devices. PC87363 also offers wake-up support for a wide range of wake-up events, and new hardware and software features to protect the system design. Like all members of this family, PC87363 is PC99 and ACPI compliant, and offers a singlechip solution to the most commonly used PC I/O peripherals.

The PC87363 also incorporates: Fan Speed Control and Monitoring for two fans, a Floppy Disk Controller (FDC), a Keyboard and Mouse Controller (KBC), a full IEEE 1284 Parallel Port, two enhanced Serial Ports (UARTs), one with Infrared (IR) support, ACCESS.bus® Interface (ACB), System Wake-Up Control (SWC), General-Purpose Input/Output (GPIO) support for a total of 49 ports of PC87363 and an enhanced WATCHDOGä timer.
