PC87360

Features: ` Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997` Protection features, including I/O access lock, GPIO lock and pin configuration lock` 45 GPIO Ports (37 standard, including 23 with Assert IRQ/SMI/PWUREQs interrupts; 8 VSB-powered)` Fan Spe...

product image

PC87360 Picture
See larger image
SeekIC No. : 004456142 Detail

PC87360: Features: ` Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997` Protection features, including I/O access lock, GPIO lock and pin configuration lock` 45 G...

PC87360 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87360
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Bus interface, based on Intel's LPC Interface Specification Revision 1.0, September 29th, 1997
` Protection features, including I/O access lock, GPIO lock and pin configuration lock
` 45 GPIO Ports (37 standard, including 23 with Assert IRQ/SMI/PWUREQs interrupts; 8 VSB-powered)
` Fan Speed Control and Monitor for two fans
` Interrupt Serializer (11 Parallel IRQs to Serial IRQ)
` Serial IRQ support (15 options)
` ACCESS.bus Interface, compatible with SMbus physical layer
` Blinking LEDs
` 128-pin PQFP Package


Pinout

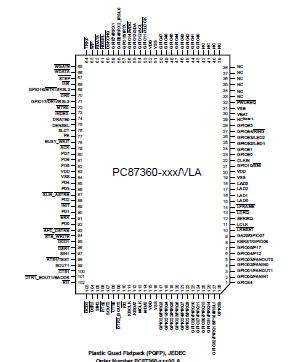

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
Vcc
Supply Voltage
-0.5
6.5
V
VI
Input Voltage

-0.5
VDD+ 0.5
V
   VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 K2
2000
V
Note 1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The PC87360 is the first member of National Semiconductor's 128-pin SuperI/O family to support the Low Pin Count (LPC) interface. It provides features to protect the system design, and supports 45 GPIO ports, many with Assert IRQ/SMI/PWUREQ capability. The PC87360 is PC99 and ACPI compliant, and offers a single-chip solution to the
most commonly used PC I/O peripherals.

The PC87360 also incorporates: Fan Speed Control and Monitoring for two fans, a Floppy Disk Controller (FDC), a Keyboard and Mouse Controller (KBC), a full IEEE 1284 Parallel Port, two enhanced Serial Ports (UARTs), one with Infrared (IR) support, an ACCESS.bus® Interface (ACB), System Wake-Up Control (SWC), Interrupt Serializer for Parallel IRQs and an enhanced WATCHDOGä timer.
