PC87351

Features: • Fan Speed Control for two fans• 11 General-Purpose I/O Ports, bi-directional, with interrupt assertion capability• System Wake-Up Control powered by VSB, generates power-up request in response to preprogrammed keyboardor mouse sequence, modem, telephone ring, and two ...

product image

PC87351 Picture
See larger image
SeekIC No. : 004456141 Detail

PC87351: Features: • Fan Speed Control for two fans• 11 General-Purpose I/O Ports, bi-directional, with interrupt assertion capability• System Wake-Up Control powered by VSB, generates powe...

PC87351 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC87351
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fan Speed Control for two fans
• 11 General-Purpose I/O Ports, bi-directional, with interrupt assertion capability
• System Wake-Up Control powered by VSB, generates power-up request in response to preprogrammed keyboard
or mouse sequence, modem, telephone ring, and two general-purpose events without an external clock
• Serial or parallel IRQ support
• Programmable write protect for Floppy Disk Controller
• Power-fail recovery support


Pinout

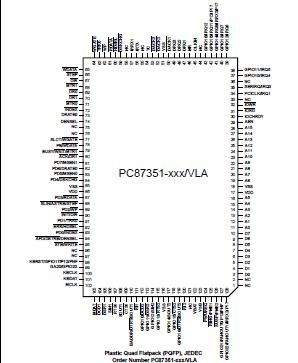

Connection Diagram


Specifications

Symbol
Paramete
Conditions
Min
Max
Unit
VDD
Supply Voltage
-0.5
TBD
V
VI
Input Voltage

-0.5
VDD+ 0.5
V
   VO
Output Voltage

-0.5
VDD + 0.5
V
TSTG
Storage Temperature
-65
+165
°C
PD
Power Dissipation
1
W
TL
Lead Temperature Soldering (10 s)
+260
°C
ESD Tolerance
CZAP = 100 pF RZAP = 1.5 KNote 1.
2000
V
Note 1. Value based on test complying with RAI-5-048-RA human body model ESD testing.


Description

The PC87351, a member of National Semiconductor's SuperI/ O family of integrated PC peripherals, is a 128-pin, PC98 and ACPI compliant SuperI/O that offers a single-chip solution to the most commonly used ISA peripherals.

The PC87351 incorporates: a Floppy Disk Controller (FDC) which is available also on the Parallel Port pins as a multiplexed option (PPM), two enhanced Serial Ports, Infrared Comunication Port (HP-SIR, Sharp-IR, and Consumer Electronics-IR), a full IEEE 1284 Parallel Port, a Keyboard and Mouse Controller (KBC), System Wake-Up Control (SWC), General-Purpose Input/Output (GPIO) Ports withassert interrupt capability, and Fan Speed Control (FSC).
