Product Details

Description



Features:

· Floppy Disk Controller:
- Software compatible with the DP8477, the 765A and the N82077
- 16-byte FIFO (disabled by default)
- Burst and Non-Burst modes
- Perpendicular recording drive support
- High performance internal analog data separator
(no external filter components required)
- Low power CMOS with power-down mode
- Automatic media-sense support with full IBM TDR (Tape Drive Register) implementation for PC-AT and PS/2 floppy drive types
· Keyboard Controller:
- 8042AH and PC87911 software compatible
- 8-bit Microcomputer with 2 kBytes custom ROM and 256 Bytes data RAM
- Asynchronous access to two data registers and one status register during normal operation
- Dedicated open drain outputs for keyboard controller application
- Supports both interrupt and polling
- 10 programmable I/O pins
- 4 dedicated open-drain bidirectional pins
- 8-bit Timer/Counter
- Binary and BCD arithmetic



Pinout

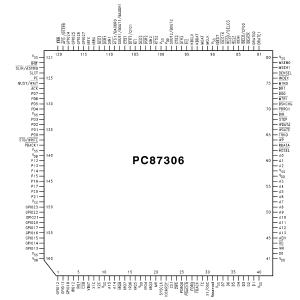

  Connection Diagram


Specifications

Supply Voltage (VDD) ....... -0.5V to + 7.0V
Input Voltage (VI).......  -0.5 to VDD + 0.5V
Output Voltage (VO) ......-0.5 to VDD + 0.5V
Storage Temperature (TSTG) . -65°C to + 165°C
Power Dissipation (PD) ..............1W
Lead Temperature (TL)
(Soldering, 10 seconds) .......... +260°C
Note 1: Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Note 2: Unless otherwise specified, all voltages are referenced to ground.



Description

The PC87306 is a single chip solution incorporating a Keyboard and PS/2É Mouse Controller (KBC), Real Time Clock(RTC) and most commonly used I/O peripherals in ISA, EISA and MicroChannelÉ based computers. In addition to the KBC and RTC, a Floppy Disk Controller (FDC), two full featured UARTs, an IEEE 1284 compatible parallel port and all the necessary control logic for an IDE interface provides support for most commonly used I/O peripherals. Standard PC-ATÉ address decoding for all the peripherals, a set of configuration registers, and two user selectable chip selects are also implemented in PC87306 highly integrated member of the SuperI/O family. The advanced features and high integration of the PC87306 result in several benefits for low cost, high performance systems. Printed circuit board space savings, fewer components on the motherboard and compatibility with the latest industry standard peripherals are only a few of the benefits of using a PC87306.

The KBC is fully software compatible with the 8042AH microcontroller. PC87306 contains system timing, control logic, custom ROM program memory, RAM data memory and 18 programmable I/O lines of PC87306 necessary to implement dedicated control functions. It is an efficient controller which uses predominantly single byte instructions with support for binary and BCD arithmetic and extensive bit handling capabilities.
