Product Details

Description



Features:

• Designed to Operate 5.0 V VPWR 27 V
• 24-Bit SPI for Control and Fault reporting, 3.3 V/5.0 V Compatible
• Outputs Are Current Limited (0.9 A to 2.5 A) to Drive Incandescent Lamps
• Output Voltage Clamp of +50 V During Inductive Switching
• On/Off Control of Open Load Detect Current (LED Application)
• VPWR Standby Current < 10 µA
• RDS(ON) of 0.55 Ω at 25°C Typical
• Independent Overtemperature Protection
• Output Selectable for PWM Control
• Output ON Short-to-VBAT and OFF Short-to-Ground/Open Detection
• 54-Pin Exposed Pad Package for Thermal Performance
• Pb-Free Packaging Designated by Suffix Code EK


Pinout

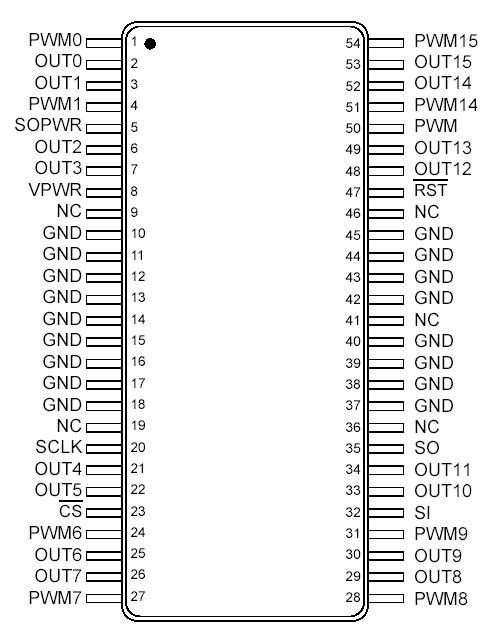

Connection Diagram


Specifications

Rating Symbol Value Unit
VPWR Supply Voltage (Note 1) VPWR -1.5 to 50 V
SPI Interface Logic Supply Voltage (Note 1) SOPWR -0.3 to 7.0 V
SPI Interface Logic Input Voltage (CS, PWM, SI, SO, SCLK, RST, PWMn)
(Note 1)		 VIN -0.3 to 7.0 V
Output Drain Voltage VDS -0.3 to 45 V
Frequency of SPI Operation (Note 2) fSPI 6.0 MHz
Output Clamp Energy (Note 3) ECLAMP 50 mJ
ESD Voltage (Note 4)
Human Body Model (Note 5)
Machine Model (Note 6)		 VESD1
VESD2		 ±2000
±200		 V
Storage Temperature TSTG -55 to 150 °C
Operating Case Temperature TC -40 to 125 °C
Operating Junction Temperature TJ -40 to 150 °C
Power Dissipation (TA = 25°C) (Note 7) PD 2.0 W
Lead Soldering Temperature (Note 8) TSOLDER 260 °C
Thermal Resistance
Junction-to-Ambient (Note 9)
Junction-to-Case (Note 10)
Junction-to-Board		 RJA
RJC
RJB		 60
1.2
8.0		 °C/W
Notes
1. Exceeding these limits may cause malfunction or permanent damage to the device.
2. This parameter is guaranteed by design but not production tested.
3. Maximum output clamp energy capability at 150°C junction temperature using single non-repetitive pulse method.
4. ESD data is available upon request.
5. ESD1 testing is performed in accordance with the Human Body Model (CZAP = 100 pF, RZAP = 1500 Ω).
6. ESD2 testing is performed in accordance with the Machine Model (CZAP = 200 pF, RZAP = 0 Ω).
7. Maximum power dissipation with no heat sink used.
8. Lead soldering temperature limit is for 10 seconds maximum duration. Not designed of immersion soldering. Exceeding these limits may cause malfunction or permanent damage to the device.
9. Tested per JEDEC test JESD52-2 (single-layer PWB).
10. Tested per JEDEC test JESD51-8 (two-layer PWB).


Description

The 33999 is a 16-output low-side switch with a 24-bit serial input control. PC33999EK is designed for a variety of applications including inductive, incandescent, and LED loads. The Serial Peripheral Interface (SPI)PC33999EK provides both input control and diagnostic readout. Eight parallel inputs are also provided for direct Pulse Width Modulation (PWM) control of eight dedicated outputs.

Additionally, an output-programmable PWM input provides PWM of any combination of outputs. A dedicated reset input of PC33999EK provides the ability to clear all internal registers and turn all outputs off.

The 33999 directly interfaces with microcontrollers and is compatible with both 3.3 V and 5.0 V CMOS logic levels. The 33999, in effect, serves as a bus expander and buffer with fault management features that reduces the MCU's fault management burden.
