PC33889

Features: • Vdd1: 5V Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function. Total current capability 200mA.• V2: Tracking function of Vdd1 regulator. Control circuitry for external bipolar ballast transistor for high flexibility in ch...

product image

PC33889 Picture
See larger image
SeekIC No. : 004455919 Detail

PC33889: Features: • Vdd1: 5V Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function. Total current capability 200mA.• V2: Tracking function of ...

PC33889 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC33889
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Vdd1: 5V Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function. Total current capability 200mA.
• V2: Tracking function of Vdd1 regulator. Control circuitry for external bipolar ballast transistor for high flexibility in choice of peripheral voltage and current supply.
• Four operational modes: normal, stand-by, stop and sleep modes.
• Low stand-by current consumption in stop and sleep modes
• Built in Low speed 125KBaud fault tolerant CAN physical interface, compatible with Motorola MC33388.
• External high voltage wake-up input, associated with HS1 Vbat switch
• 150mA output current capability for HS1 Vbat switch allowing drive of external switches pull up resistors or relays
• Vsup monitoring and failure detection
• DC Operating voltage from 5 to 27V
• 40V maximum transient voltage
• Programmable software time out and window watchdog
• Separate outputs for Watchdog time out signal (WDOGB) and Reset (Reset).
• Wake up capabilities: wake up input, programmable cyclic sense, forced wake up, CAN interface, SPI (CSB pin) and stop mode over current.
• Interface with MCU through 4 Mhz SPI.
• SO28WB package with thermal enhanced lead frame.


Pinout

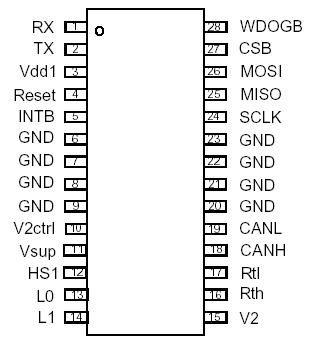

Connection Diagram


Specifications

Ratings Symbol Min Typ Max Unit
Supply Voltage at Vsup
- Continuous voltage
- Transient voltage (Load dump)		 Vsup
Vsup		 -0.3   27
40		 V
Logic Inputs (Rx, Tx, MOSI, MISO, CSB, SCLK, Reset,
WDOGB, INTB)		 Vlog -0.3   Vdd1+0.3 V
Output current Vdd1 I   Internally limited   A
HS1
- voltage
- output current		 VI -0.2 Internally limited Vsup+0.3 V
A
ESD voltage (HBM 100pF, 1.5k)
- CANL, CANH, Rtl, Rth, HS1, L0, L1
- All other pins		 Vesdh -4
-2		   4
2		 kV
ESD voltage (Machine Model) All pins Vesdm -200   200 kV
L0, L1
- DC Input voltage
- DC Input current
- Transient input current (according to ISO7637 specification)
and with external component tbd.		 Vwu DC -0.3
-2
tbd		   40
2
tbd		 V
mA
mA
CAN related pins: CANH, CANL, RTL, RTH, Tx, Rx
(refer to CAN section)
Junction Temperature Tj - 40   +150 °C
Storage Temperature Ts - 55   +165 °C
Ambient Temperature (for info only) Ta - 40   +125 °C
Thermal resistance junction to gnd pin (note 1) Rthj/p     20 °C/W
Note 1: gnd pins 6,7,8,9,20, 21, 22, 23.


Description

The MC33889 is a monolithic integrated circuit combining many functions frequently used by automotive ECUs. It incorporates a low speed fault tolerant CAN physical interface.
