PBL386652

The PBL 386 65/2 Subscriber Line Interface Circuit (SLIC) is a 90 V bipolar integrated circuit for use in DLC, Central Office and other telecommunications equipment. The PBL 386 65/2 has been optimized for low total line interface cost and a high degree of flexibility in different applications.

The PBL 386 65/2 emulates a transformer equivalent dc-feed, programmable between 2x25 and 2x900 , with short loop current limiting adjustable to max 65 mA.

A second lower battery voltage may be connected to PBL386652 to reduce short loop power dissipation. The SLIC automatically switches between the two battery supply voltages of PBL386652 without need for external components or external control.The SLIC incorporates loop current, ground key and ring trip detection functions. The PBL 386 65/2 is compatible with loop start and ground start signalling.

Two- to four-wire and four- to two-wire voice frequency (vf) signal conversion of PBL386652 is accomplished by the SLIC in conjunction with either a conventional CODEC/filter or with a programmable CODEC/filter, e.g. SLAC, SiCoFi, Combo II. The programmable line terminating impedance could be complex or real to fit every market.

Longitudinal line voltages of PBL386652 are suppressed by a feedback loop in the SLIC and the longitudinal balance specifications meet the DLC requirements.

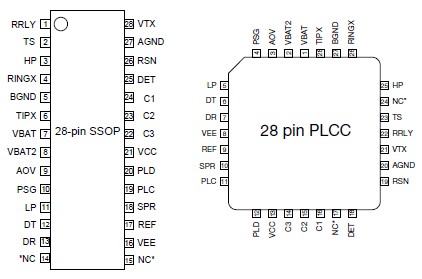

The PBL 386 65/2 package is 28-pin PLCC and 28-pin SSOP.
