PBL38620/2

The PBL 386 20/2 Subscriber Line Interface Circuit (SLIC) is a 90 V bipolar integrated circuit for use in PBX,Terminal adapters and other telecommunications equipment. The PBL 386 20/2 has been optimized for low total line interface cost and a high degree of flexibility in different applications.

The PBL 386 20/2 has constant current feed, programmable to max. 30 mA.

A second lower battery voltage of PBL38620/2 may be connected to the device to reduce short loop power dissipation. The SLIC automatically switches between the two battery  supply voltages without need for external components or external control.

The SLIC incorporates loop current, ground key and ring trip detection functions.

The PBL 386 20/2 is compatible with loop start signaling.

Two- to four-wire and four- to two-wire voice frequency (VF) signal conversion is accomplished by the SLIC PBL38620/2 in conjunction with either a conventional CODEC/filter or with a programmable CODEC/filter, e.g. SLAC, SiCoFi, Combo II. The programmable two-wire impedance, complex or real, is set by a simple external network.

Longitudinal voltages of PBL38620/2 are suppressed by a feedback loop in the SLIC and the longitudinal balance specifications meet Bellcore TR909 requirements.

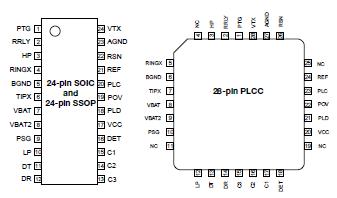

The PBL 386 20/2 package options are 24-pin SSOP, 24-pin SOIC and 28 pin PLCC.
