P90CE201

· CMOS technology
· Full 68000 software compatibility
· 32-bit internal structure
· 16-bit internal data transfer
· 8-bit access to external ROM/RAM
· External addressing range 16 Mbytes for ROM and16 Mbytes for RAM
· Unused address pins can be used as quasi-bidirectionalports
· On-chip address decoder for ROM/RAM
· 8 edge triggered programmable interrupts that can alsobe used as quasi-bidirectional ports
· Reset control
· Built-in clock generator
· 2 fully independent fast I2C-bus serial interfaces
· UART serial interface (4 modes)
· 3 fully independent 16-bit timers
· Watchdog timer
· 8-bit quasi-bidirectional port, 4-bits with high drivecapability
· EMC optimized layout and pinning

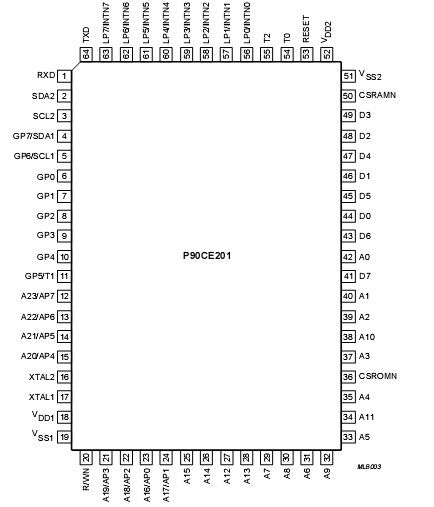

· 64-pin QFP package

These products are not designed for use in life support appliances, devices, or systems where malfunction of theseproducts can reasonably be expected to result in personal injury. Philips customers using or selling these products foruse in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from suchimproper use or sale

The P90CE201 is a member of the P9XCXXX family ofhighly integrated 16-bit microcontrollers for use in a widevariety of applications. It is fully software compatible withthe 68070/68000. The complete set of system functionsavailable on the chip results in reduced system cost.Additionally, P90CE201  modular designconcept permits futureextension to the family.
