Product Details

Description



Pinout

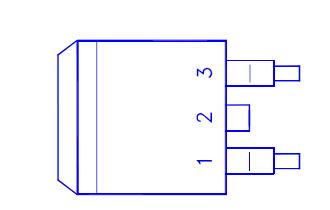

Connection Diagram


Specifications

PARAMETERS/TEST CONDITIONS SYMBOL LIMITS UNITS
Gate-Source Voltage VGS ±2 V
Continuous Drain Current TC = 25 °C ID 75 A
TC = 100 °C 50
Pulsed Drain Current1 IDM 170
Avalanche Current IAR 60
Avalanche Energy L = 0.1mH EAS 140 mJ
Repetitive Avalanche Energy2 L = 0.05mH EAR 5.6
Power Dissipation TC = 25 °C PD 65 W
TC = 100 °C 3
Operating Junction & Storage Temperature Range Tj, Tstg -55 to 150 °C
Lead Temperature (1/16" from case for 10 sec.) TL 275
