Features: `LOW INPUT NOISE VOLTAGE: 2.0nV/Hz`HIGH UNITY GAIN BANDWIDTH: 500MHz`HIGH GAIN BANDWIDTH PRODUCT: 240MHz`HIGH OUTPUT CURRENT: 90mA`SINGLE +5V TO +12V OPERATION`LOW SUPPLY CURRENT: 4.8mA/chApplication·xDSL DIFFERENTIAL LINE RECEIVERS·HIGH DYNAMIC RANGE ADC DRIVERS·LOW NOISE PLL INTEGRATOR...

product image

OPA2822 Picture
SeekIC No. : 004438236 Detail

OPA2822: Features: `LOW INPUT NOISE VOLTAGE: 2.0nV/Hz`HIGH UNITY GAIN BANDWIDTH: 500MHz`HIGH GAIN BANDWIDTH PRODUCT: 240MHz`HIGH OUTPUT CURRENT: 90mA`SINGLE +5V TO +12V OPERATION`LOW SUPPLY CURRENT: 4.8mA/ch...

floor Price/Ceiling Price

Part Number:
OPA2822
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`LOW INPUT NOISE VOLTAGE: 2.0nV/Hz
`HIGH UNITY GAIN BANDWIDTH: 500MHz
`HIGH GAIN BANDWIDTH PRODUCT: 240MHz
`HIGH OUTPUT CURRENT: 90mA
`SINGLE +5V TO +12V OPERATION
`LOW SUPPLY CURRENT: 4.8mA/ch



Application

·xDSL DIFFERENTIAL LINE RECEIVERS
·HIGH DYNAMIC RANGE ADC DRIVERS
·LOW NOISE PLL INTEGRATORS
·TRANSIMPEDANCE AMPLIFIERS
·PRECISION BASEBAND I/Q AMPLIFIERS
·ACTIVE FILTERS



Pinout

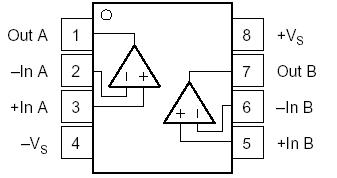

  Connection Diagram
