Product Details

Description

Features:

• Dynamic range: TYP 500
• CCD for high sensitivity
• CCD transfer efficiency greater than 99.995%
• Photodetector configured of PN junction photodetector diodes for good blue sensitivity and good output uniformity.
• Photodiodes highly integrated with 13 mm pitch for high resolution
• High-speed scanning
• Low-voltage operation
• Internal output amplifier and compensating amplifier

Application

• Facsimiles
• Monitoring devices
• OCRs
• Object recognition
• Industrial control
• Measurement devices

Pinout

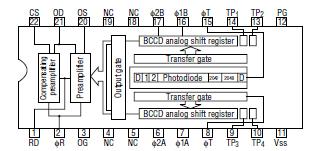

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Rating	Unit
V	Clock Voltage	Ta = 25°C	-0.3to+18	V
V_DD	Applied Voltage	Ta = 25°C	-0.3to+18	V
T_opr	Operating Temperature	-	20 to +85	°C
T_stg	Storage Temperature	-	40 to +125	°C

Description

The OPA2048CA is a 2,048-bit, one-dimensional diode array comprised of PN junction photodetector diodes and CCDs (charge coupled devices). By using a two-phase clock pulse,transfer pulse, and reset pulse, the OPA2048CA can measure incident light.
