OPA277UA

Operational Amplifiers - Op Amps High Precision Oper Amplifier

product image

OPA277UA Picture
SeekIC No. : 00291600 Detail

OPA277UA: Operational Amplifiers - Op Amps High Precision Oper Amplifier

floor Price/Ceiling Price

US $ .76~1.42 / Piece | Get Latest Price
Part Number:
OPA277UA
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~100
  • Unit Price
  • $1.42
  • $1.27
  • $1.13
  • $.76
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 1 Common Mode Rejection Ratio (Min) : 115 dB
Input Offset Voltage : 0.05 mV Input Bias Current (Max) : 2.8 nA
Operating Supply Voltage : 36 V Mounting Style : SMD/SMT
Package / Case : SOIC-8 Slew Rate : 0.8 V/us
Shutdown : No Maximum Operating Temperature : + 85 C
Packaging : Tube

Description

Output Current :
Number of Channels : 1
Mounting Style : SMD/SMT
Package / Case : SOIC-8
Packaging : Tube
Slew Rate : 0.8 V/us
Shutdown : No
Maximum Operating Temperature : + 85 C
Common Mode Rejection Ratio (Min) : 115 dB
Operating Supply Voltage : 36 V
Input Offset Voltage : 0.05 mV
Input Bias Current (Max) : 2.8 nA


Features:

·  ULTRA LOW OFFSET VOLTAGE: 10mV
·  ULTRA LOW DRIFT: ±0.1mV/°C
·  HIGH OPEN-LOOP GAIN: 134dB
·  HIGH COMMON-MODE REJECTION: 140dB
·  HIGH POWER SUPPLY REJECTION: 130dB
·  LOW BIAS CURRENT: 1nA max
·  WIDE SUPPLY RANGE: ±2V to ±18V
·  LOW QUIESCENT CURRENT: 800mA/amp
·  SINGLE, DUAL, AND QUAD VERSIONS
·  REPLACES OP-07, OP-77, OP-177



Application

· TRANSDUCER AMPLIFIER
· BRIDGE AMPIIFIER
· TEMPERATURE MEASUREMENTS
· STRAIN GAGE AMPIIFIER
· PRECISION INTEGRATOR
· BATTERY POWERED INSTRUMENTS
· TEST EQUIPMENT



Pinout

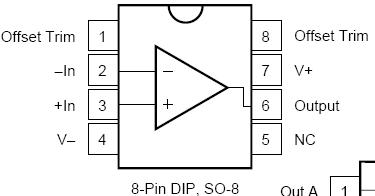

  Connection Diagram


Specifications

Supply Voltage .................................................................................... 36V
Input Voltage .....................................................(V) 0.7V to (V+) +0.7V
Output Short-Circuit(2) .............................................................Continuous
Operating Temperature ................................................. 55°C to +125°C
Storage Temperature ..................................................... 55°C to +125°C
Junction Temperature ...................................................................... 150°C
Lead Temperature (soldering, 10s) ................................................. 300°C
NOTE: (1) Stresses above these rating may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may degrade
device reliability. (2) Short-circuit to ground, one amplifier per package.



Description

The OPA277 series precision op amps replace the industry standard OP-177. They offer improved noise, wider output voltage swing, and are twice as fast with half the quiescent current. Features include ultra low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection. Single, dual, and quad versions have identical specifications for maximum design flexibility.

OPA277 series op amps operate from ±2V to ±18V supplies with excellent performance. Unlike most op amps which are specified at only one supply voltage, the OPA277 series is specified for real-world applications; a single limit applies over the ±5V to ±15V supply range. High performance is maintained as the amplifiers swing to their specified limits.

Because the initial offset voltage (±20mV max) is so low, user adjustment is usually not required. However, the single version (OPA277) provides external trim pins for special applications. OPA277 op amps are easy to use and free from phase inversion and overload problems found in some other op amps. They are stable in unity gain and provide excellent dynamic behavior over a wide range of load conditions. Dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. Single (OPA277) and dual (OPA2277) versions are available in 8-pin DIP and SO-8 surface-mount packages. The quad (OPA4277) comes in 14-pin DIP and SO-14 surface-mount packages. All are fully specified from 40°C to +85°C and operate from 55°C to +125°C.




Parameters:

Technical/Catalog InformationOPA277UA
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypeGeneral Purpose
Number of Circuits1 - Single
Package / Case8-SOIC (3.9mm Width)
Slew Rate0.8 V/s
Gain Bandwidth Product1MHz
Current - Supply790A
Current - Output / Channel35mA
Voltage - Supply, Single/Dual (±)4 V ~ 36 V, ±2 V ~ 18 V
Output Type-
-3db Bandwidth-
Current - Input Bias500pA
Operating Temperature-40°C ~ 85°C
Voltage - Input Offset20V
Drawing Number296; 4040047-2; D; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names OPA277UA
OPA277UA
