OPA2650

Features: ` LOW POWER: 50mW/Chan.`UNITY GAIN STABLE BANDWIDTH: 360MHz` FAST SETTLING TIME: 20ns to 0.01%` LOW HARMONICS: 77dBc at 5MHz` DIFFERENTIAL GAIN/PHASE ERROR: 0.01%/0.025°` HIGH OUTPUT CURRENT: 85mAApplication· HIGH RESOLUTION VIDEO· BASEBAND AMPLIFIER· CCD IMAGING AMPLIFIER· ULTRASOUND SI...

product image

OPA2650 Picture
See larger image
SeekIC No. : 004438186 Detail

OPA2650: Features: ` LOW POWER: 50mW/Chan.`UNITY GAIN STABLE BANDWIDTH: 360MHz` FAST SETTLING TIME: 20ns to 0.01%` LOW HARMONICS: 77dBc at 5MHz` DIFFERENTIAL GAIN/PHASE ERROR: 0.01%/0.025°` HIGH OUTPUT CURRE...

OPA2650 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OPA2650
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW POWER: 50mW/Chan.
`UNITY GAIN STABLE BANDWIDTH: 360MHz
` FAST SETTLING TIME: 20ns to 0.01%
` LOW HARMONICS: 77dBc at 5MHz
` DIFFERENTIAL GAIN/PHASE ERROR: 0.01%/0.025°
` HIGH OUTPUT CURRENT: 85mA


Application

· HIGH RESOLUTION VIDEO
· BASEBAND AMPLIFIER
· CCD IMAGING AMPLIFIER
· ULTRASOUND SIGNAL PROCESSING
· ADC/DAC GAIN AMPLIFIER
· ACTIVE FILTERS
· HIGH SPEED INTEGRATORS
· DIFFERENTIAL AMPLIFIER


Pinout

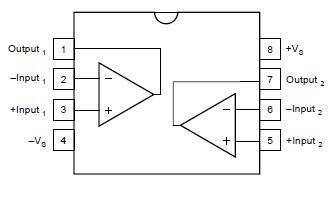

Connection Diagram


Specifications

Supply Voltage ............................................................................... ±5.5V
Internal Power Dissipation ........................... See Thermal Characteristics
Differential Input Voltage ................................................................±1.2V
Input Voltage Range ..........................................................................±VS
Storage Temperature Range: P, PB, U, UB, E ................ 40 to +125
Lead Temperature (DIP, soldering, 10s) ...................................... +300
(SO-8 and MSOP-8, soldering, 3s) .................................................. +260
Junction Temperature (TJ ) .......................................................... +175


Description

The OPA2650 is a dual, low power, wideband voltage feedback operational amplifier. It features a high bandwidth of 360MHz as well as a 12-bit settling time of only 20ns. The low distortion allows its use in communications applications, while the wide bandwidth and true differential input stage make it suitable for use in a variety of active filter applications. Its low distortion gives exceptional performance for telecommunications, medical imaging and video applications.

The OPA2650 is internally compensated for unitygain stability. This amplifier has a fully symmetrical differential input due to its "classical" operational amplifier circuit architecture. Its unusual combination of speed, accuracy and low power make it an outstanding choice for many portable, multi-channel and other high speed applications, where power is at a premium.

The OPA2650 is also available in single (OPA650) and quad (OPA4650) configurations.
