Product Details

Description



Features:

• CCD for high sensitivity
• CCD transfer efficiency greater than 99.995%
• Photodetector configured of PN junction photodetector diodes for good blue sensitivity and good output uniformity.
• Photodiodes highly integrated with 13 mm pitch for high resolution
• High-speed scanning
• Low-voltage operation
• Internal output amplifier and compensating amplifier



Application

• Industrial control
• Pattern recognition
• Control devices
• Object detection

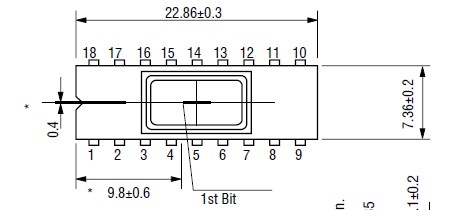

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Test Condition
Min.
Max.
Unit
Storage Temperature
Tstg
‚-
40
+125
°C
Operating Temperature
Top
-
20
+85
°C
Clock Voltage
V
Ta=25°C
0.3
+18
V
Applied Voltage
VDD
0.3
+18
v



Description

The OPA256C-1 is a 256-bit, one-dimensional diode array comprised of PN junction photodetector diodes and CCDs (charge coupled devices). By using a two-phase clock pulse, transfer pulse, and reset pulse, the OPA256C-1 can measure incident light.
