Features:

Low Noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/Hz
Low Drift: 0.2V/
High Speed: 2.8 V/s Slew Rate, 8 MHz Gain Bandwidth
Low VOS: 10 V
Excellent CMRR: 126 dB at VCM of ±11 V
High Open-Loop Gain: 1.8 Million
Fits 725, OP07, 5534A Sockets
Available in Die Form

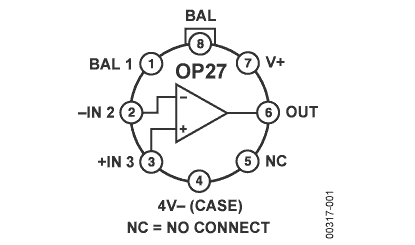

Pinout

OP27 Diagram




Specifications

-3dB Bandwidth 8MHz
Slew Rate 2.8V/s
Vos 30V
Ib 15nA
Input Noise (nV/rtHz) 3.2nV/rtHz
Vcc-Vee Supply (V) 8 to 44
Iq per Amplifier 5.7mA
# OpAmps per Pkg 1
Operating Temp Range -55 to +125
Packages DIP,SOIC,TO-X


Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±22 V
Input Voltage1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±22 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . ±0.7 V
Differential Input Current2 . . . . . . . . . . . . . . . . . . . .±25 mA
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP27A, OP27C (J, Z) . . . . . . . . . . . . . . . . 55°C to +125°C
OP27E, OP27F (J, Z) . . . . . . . . . . . . . . . . . 25°C to +85°C
OP27E, OP27F (P) . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
OP27G (P, S, J, Z) . . . . . . . . . . . . . . . . . . 40°C to +85°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . 300°C
Junction Temperature . . . . . . . . . . . . . . . . .65°C to +150°C





Description

The OP27 precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise. Offsets down to 25 µV and drift of 0.6 µV/°C maximum make the OP27 ideal for precision instrumentation app-lications. Exceptionally low noise, en = 3.5 nV/Hz, at 10 Hz, a low 1/f noise corner frequency of 2.7 Hz, and high gain (1.8 million), allow accurate high-gain amplification of low-level signals. A gain-bandwidth product of 8 MHz and a 2.8 V/µsec slew rate provides excellent dynamic accuracy in high-speed, dataacquisition systems.

A low input bias current of ± 10 nA is achieved by use of a bias-current-cancellation circuit. Over the military tem-perature range, this circuit OP27 typically holds IB and IOS to ±20 nA and 15 nA, respectively.

The output stage has good load driving capability. A guaranteed swing of ±10 V into 600 Ω and low output distortion make the OP27 an excellent choice for professional audio applications.
