Features:

Low Noise
No External Components Required
Replaces Chopper Amplifiers at a Lower Cost
Single-Chip Monolithic Fabrication
Wide Input Voltage Range 0 to ±14 V Typ
Wide Supply Voltage Range ±3 V to ±18 V
Essentially Equivalent to Fairchild A714 Operational Amplifiers
Direct Replacement for PMI OP07C and OP07D

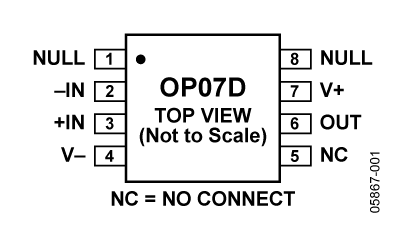

Pinout

OP07D Diagram




Specifications

Supply voltage, VCC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 V
Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22V
Differential input voltage (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30 V
Input voltage, VI (either input, see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Duration of output short circuit (see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .unlimited
Continuous total dissipation at (or below) 25°C free-air temperature (see Note 5) . . . . . . . . . . . .500 mW
Operating free-air temperature range, TA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . .0°C to 70°C
Storage temperature range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds. . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C


-3dB Bandwidth 0.6MHz
Slew Rate 0.2V/s
Vos 45V
Ib 0.2nA
Input Noise (nV/rtHz) 10nV/rtHz
Vcc-Vee Supply (V) 8 to 36
Iq per Amplifier 1.3mA
# OpAmps per Pkg 1
Operating Temp Range -40 to +125
Packages DIP,SOIC





Description

These devices OP07D represent a breakthrough in operational amplifier performance. Low offset and long-term stability are achieved by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, ext-ernal components OP07D are not required for offset nulling and frequency compensation. The true differential input, with a wide input voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07 is unsurpassed for low-noise, high-accuracy amplifi-cation of very low-level signals.
