Nm9835

Features: • Single 5-V Operation• Low Power• PCI compatible Dual UART• Pin-to-Pin compatible to Nm9735• 16 byte transmit-receive FIFO (UART)• Selectable receive trigger levels• Programmable baud rate generator• Modem control signals• 5, 6, 7, 8...

product image

Nm9835 Picture
See larger image
SeekIC No. : 004434898 Detail

Nm9835: Features: • Single 5-V Operation• Low Power• PCI compatible Dual UART• Pin-to-Pin compatible to Nm9735• 16 byte transmit-receive FIFO (UART)• Selectable receive t...

Nm9835 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Nm9835
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5-V Operation
• Low Power
• PCI compatible Dual UART
• Pin-to-Pin compatible to Nm9735
• 16 byte transmit-receive FIFO (UART)
• Selectable receive trigger levels
• Programmable baud rate generator
• Modem control signals
• 5, 6, 7, 8 Bit characters selection
• Even, Odd, No parity, or Force parity generations
• Status report capability
• Compatible with 16C550
• Multi-mode compatible controller (SPP, PS2, EPP, ECP)
• Fast data rates up to 1.5 Mbytes/s (parallel port)
• Fast data rates up to 1 Mbytes/s (serial ports)
• On chip oscillator
• Re-map function for legacy ports
• 16 Byte FIFO (parallel)
• Microsoft Compatible
• Software programmable mode selects
• 128-pin VQFP package


Application

• Printer server
• Portable backup units
• Printer interface
• Embedded applications
• High speed modems
• Monitoring equipment
• Add on I/O cards
• Serial networking


Pinout

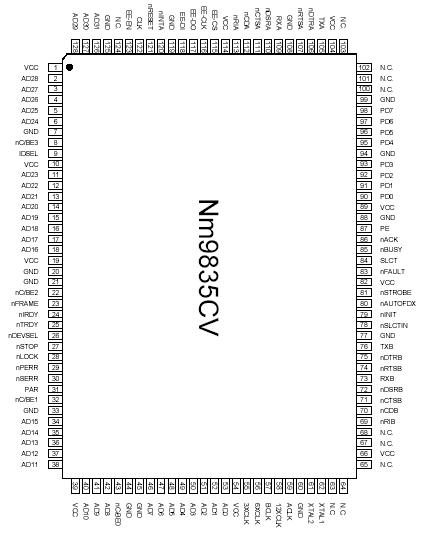

Connection Diagram


Specifications

Supply Range  . . . . . . . . . . . . . . . . . . . . .7 Volts
Voltage at any pin GND  . . . . 0.3 to VCC +0.3
Operating Temperature . . . . . -45° C to 90° C
Storage Temperature  . . . . . -65° C to 150° C
Package Dissipation  . . . . . . . . . . . . . .  500 mW
ESD  . . . . . . . . . . . . . . . . . . . . . . . . ±2000 Volts
Latch up  . . . . . . . . . . . . . . . . . . . . . . . . .220 mA


Description

The Nm9835 is a PCI based dual-channel high performance UART with Enhanced bi-directional parallel controller. The Nm9835 offers 16 byte transmit and receive FIFO for each UART channel and 16 byte FIFO for printer channel. The Nm9835 perform serial-to-parallel conversions on data received from a peripheral device, and parallel-to-serial conversion on data received from its CPU. In addition Nm9835 fully supports the existing Centronics printer interface as well as PS/2, EPP, and ECP modes.

The Nm9835 is ideally suited for PC applications, such as high speed COM ports and parallel port. The Nm9835 is available in 128-Pin QFP package, It is fabricated in an advanced in submicron CMOS process to achieve low drain power and high speed requirements.
