Nm9805

Features: • Single 5V operation• Low power• PCI compatible 1284 printer port• Multi-mode compatible controller (SPP, PS2, EPP, ECP)• Fast data rates up to 1.5 Mbytes/s (parallel port)• 16-byte FIFO (parallel)• Re-map function for legacy ports• Micros...

product image

Nm9805 Picture
See larger image
SeekIC No. : 004434897 Detail

Nm9805: Features: • Single 5V operation• Low power• PCI compatible 1284 printer port• Multi-mode compatible controller (SPP, PS2, EPP, ECP)• Fast data rates up to 1.5 Mbytes/s ...

Nm9805 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Nm9805
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5V operation
• Low power
• PCI compatible 1284 printer port
• Multi-mode compatible controller (SPP, PS2, EPP, ECP)
• Fast data rates up to 1.5 Mbytes/s (parallel port)
• 16-byte FIFO (parallel)
• Re-map function for legacy ports
• Microsoft Compatible
• Software programmable mode selects
• 128-pin QFP package


Application

• Printer server
• Portable backup units
• Printer interface
• Add-on I/O cards


Pinout

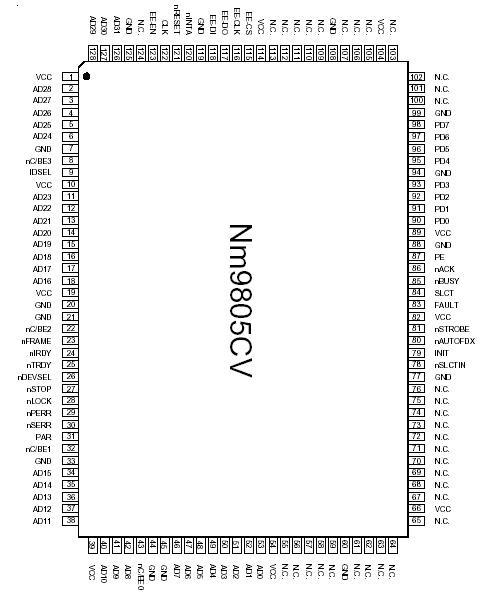

Connection Diagram


Specifications

Supply Range . . . . . . . . . . . . . . . . . . . . .7 Volts
Voltage at any pin GND  . . . . 0.3 to VCC +0.3
Operating Temperature  . . . . -45° C to 90° C
Storage Temperature . . . . . -65° C to 150° C
Package Dissipation . . . . . . . . . . . . . .  500 mW
ESD  . . . . . . . . . . . . . . . . . . . . . . . ±2000 Volts
Latch up . . . . . . . . . . . . . . . . . . . . . . . . 220 mA


Description

The Nm9805 is a 1284 parallel port controller with PCI bus interface. Nm9805 fully supports the existing Centronics printer interface as well as PS/2, EPP, and ECP modes.

The Nm9805 is ideally suited for PC applications, such as high speed parallel ports. The Nm9805 is available in a 128-pin QFP package. It is fabricated using an advanced submicron CMOS process to achieve low drain power and high-speed requirements.
