NTQD6968

Features: • Ultra Low RDS(on)• Higher Efficiency Extending Battery Life• Logic Level Gate Drive• Miniature Dual TSSOP8 Surface Mount Package• Diode Exhibits High Speed, Soft Recovery• Micro8 Mounting Information ProvidedApplication• Power Management in Por...

product image

NTQD6968 Picture
See larger image
SeekIC No. : 004436693 Detail

NTQD6968: Features: • Ultra Low RDS(on)• Higher Efficiency Extending Battery Life• Logic Level Gate Drive• Miniature Dual TSSOP8 Surface Mount Package• Diode Exhibits High Speed,...

NTQD6968 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTQD6968
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra Low RDS(on)
• Higher Efficiency Extending Battery Life
• Logic Level Gate Drive
• Miniature Dual TSSOP8 Surface Mount Package
• Diode Exhibits High Speed, Soft Recovery
• Micro8 Mounting Information Provided


Application

• Power Management in Portable and BatteryPowered Products, i.e.:
  Computers, Printers, PCMCIA Cards, Cellular and Cordless Telephones


Pinout

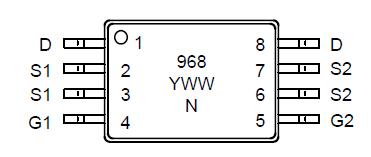

Connection Diagram


Specifications

<
Rating Symbol Value Unit
Drain−to−Source Voltage VDSS -20 Vdc
Gate−to−Source Voltage
VGS ±12 Vdc
Drain Current (Note 1)
− Continuous @ TA = 25°C
− Continuous @ TA = 70°C
− Pulsed (Note 3)		 ID
ID
IDM		 −5.5
−4.5
±30		 Adc
Total Power Dissipation (Note 1)
@ TA = 25°C		 PD 0.94
W
Drain Current (Note 2)
− Continuous @ TA = 25°C
− Continuous @ TA = 70°C
− Pulsed (Note 3)		 ID
ID
IDM		 6.6
4.5
20		 Adc
Total Power Dissipation (Note 2)
@ TA = 25°C		 PD 1.42 w
Operating and Storage Temperature Range TJ and Tstg −55 to
+150		 °C
Single Pulse Drain−to−Source Avalanche
Energy − Starting TJ = 25°C
(VDD = 40 V, IL = 18.4 A,
L = 5.0 mH, RG = 25 )		 EAS 150 mJ
Thermal Resistance
JunctiontoAmbient (Note 1)
JunctiontoAmbient (Note 2)		 RJA 132
88		 °C/W
1. Minimum FR4 or G10 PCB, Steady State.
2. Mounted onto a 2, square FR4 Board (1, sq. 2oz. Cu 0.06, thick single sided), Steady State.
3. Pulse Test: Pulse Width = 300 ms, Duty Cycle = 2%.
