Features:

• Low Gate Charge for Fast Switching
• Small Footprint − 30% Smaller than TSOP−6
• ESD Protected Gate
• Pb−Free Package for Green Manufacturing (G Suffix)


Application

• Low Side Load Switch
• Li−Ion Battery Supplied Devices − Cell Phones, PDAs, DSC
• Buck Converters
• Level Shifts


Pinout

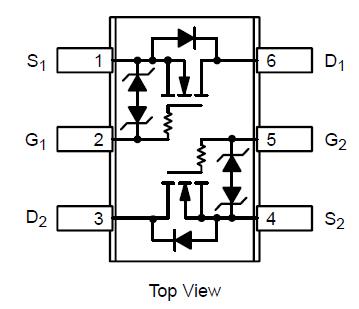

Connection Diagram


Specifications

Parameter Symbol Value Units
Drain−to−Source Voltage VDSS 30 V
Gate−to−Source Voltage VGS ±20 V
Continuous Drain
Current (Note 1)		 Steady
State		 TA = 25 °C ID 250 mA
TA = 85 °C 180
Power Dissipation
(Note 1)		 Steady
State		 TA = 25 °C Pd 272 mW
Pulsed Drain Current t =10 ms IDM 600 mA
Operating Junction and Storage Temperature TJ, Tstg −55 to
150		 °C
Source Current (Body Diode) Ls 250 mA
Lead Temperature for Soldering Purposes
(1/8" from case for 10 s)		 TL 250 °C
1. Surface mounted on FR4 board using 1 in sq. pad size
(Cu area = 1.127 in sq. [1 oz] including traces).
