Product Details

Description



Features:

 SmallSignal Bandwidth
Large Supply Voltage Range
Available in 8Lead Mini DIP (NTE894M) and Surface Mount SOIC8 (NTE894SM)


Application

 Audio Equipment
Instrumentation and Control Circuits
Telephone Channel Amplifiers
Medical Equipment


Pinout

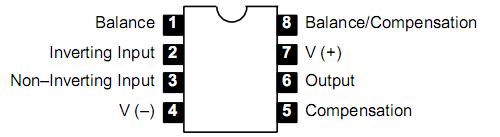

Connection Diagram


Specifications

Supply Voltage, VS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22V
Differential Input Voltage (Note 1), VDIFF  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.5V
Input Voltage, VIN  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±V supply V
Power Dissipation (TA = +25°C, Note 2), PD  . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . 1150mW
Output ShortCircuit Duration (Note 3)  . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . Indifinite
Operating Temperature Range, Topr. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 65° to +150°C
Lead Soldering Temperature (10 seconds), TL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C


Description

The NTE891M and NTE891SM are single, highperformance, low noise operational amplifiers.Compared to other operational amplifier, these devices show better noise performance, improved output drive capability and considerably higher smallsignal and power bandwidths.

This makes the NTE894SM especially suitable for applications in high quality and professional audio equipment, in instrumentation and control circuits and telephone channel amplifiers. The OP amps are internally compensated for gain equal to, or higher than, three.
