Product Details

Description



Features:

` Low Supply Current: 200A/Amplifier
` Low Input Bias Current: 5pA
` High Gain Bandwidth: 2MHz
` High Slew rate: 6V/s
` High Input Impedance: 1012
` Large Output Voltage Swing: ±14V
` Output Short Circuit Protection


Pinout

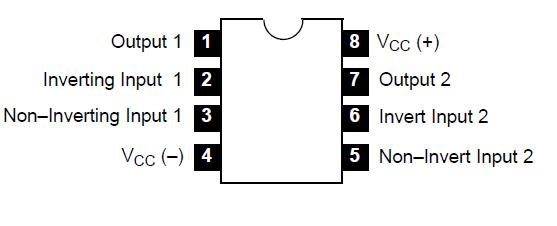

Connection Diagram


Specifications

Supply Voltage (From VCC to VEE), VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +36V
Input Differential Input Voltage (Note 1), VIDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30V
Input Voltage Range (Note 1, Note 2), VIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
Output ShortCircuit Duration (Note 3), ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite Seconds
Operating Junction Temperature (Note 3), TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0° to +70
Storage Temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Storage temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60° to +150
Note 1. Differential voltages are at the noninverting input terminal with respect to the inverting input terminal.
Note 2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15V, whchever is less.
Note 3. Power dissipation must be considered to ensure maximun junction temperature (TJ) is not exceeded.


Description

The NTE889M is a JFETinput operational amplifier in an 8Lead DIP type package designed for low power applications and features high input impedance, low input bias current, and low input offset current. Advanced design techniques of NTE889M allow for higher slew rates, gain bandwidth products, and output swing.
