Product Details

Description



Features:

` ±1.2V to ±18V Operation
` Wide Programming Range
` Offset Null Capability
` No Frequency Compensation Required
` Low Input Bias Currents
` ShortCircuit Protection

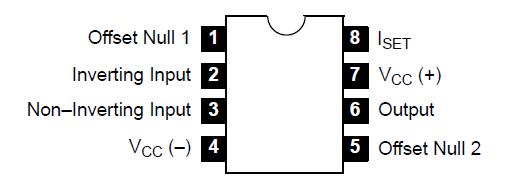

Pinout

Connection Diagram


Specifications

Power Supply Voltages, VCC, VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±18V
Differential Input Voltage, VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±30V
CommonMode Input Voltage, VICM
VCC and |VEE| < 15V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC, VEE
VCC and |VEE| 15V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V
Offset Null to VEE Voltage, Voff VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.5V
Programming Current, Iset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500A
Programming Voltage, VSET
Voltage from ISET terminal to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(VCC 2V) to VCC
Output ShortCircuit Duration (Note 1), ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Indefinite
Operating Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +125
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Note 1. May be to GND or either Supply Voltage. Rating applies up to a case temperature of +125or ambient temperature of +70°C and ISET 30A.


Description

The NTE888M is an operational amplifier in an 8Lead DIP type package featuring low power consumption and high input impedance. In addition, the quiescent currents within this device may be programmed by the choice of an external resistor value or current source applied to the ISET input.

This allows the NTE888M's characteristics to be optimized for input current and power consumption despite wide variations in operating power supply voltages.
