NTE879

Features:

 Reference Oscillator SelfContained or Externally Driven
Nominal 90° ±5° Axes are Optionally Trimmable
Simple PAL/NTSC Switch
Luminance and Chroma Channels can accept Delay Line/Bandpass Elements or Direct Con-nection
Provides DC Reference to Permit Direct Drive to RF Modulator

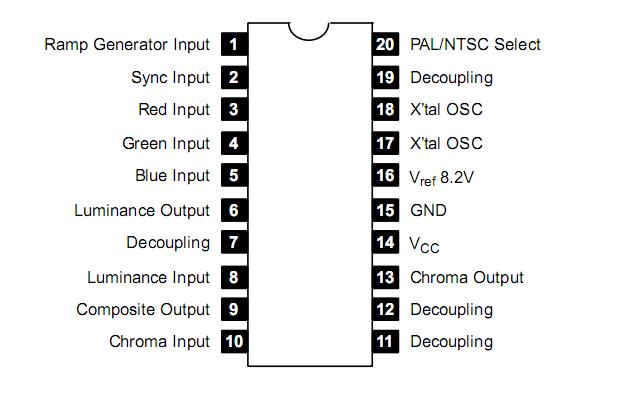

Pinout




Specifications

Supply Voltage, V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
8.2Vdc Regulator Output Current, I_REG  . . . . . . . . . . . . . . . . . . . . .  .. . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Power Dissipation, P_D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25W
Derate Above 25°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .. . . . . . . . . . . . . . . . . 10mW/°C
Junction Temperature, T_J  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Operating Temperature Range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .  0° to +70°C
Storage Temperature Range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150°C


Description

The NTE879 is an integrated circuit in a 20Lead DIP type package used to generate a composite TV signal from baseband red, blue, green, and sync inputs.  This NTE879 has color subcarrier oscillator,voltage controlled 90° phase shifter, two DSB suppressed carrier chroma modulators, RGB input ma-trices, and blanking level clamps.  It can be operated with very few external parts, but has the pinouts for a fully implemented, top quality composite signal.  NTE879 is ideal for encoding signals from color camer-as and graphic generators.
