NTE874

Features:

 Sync Separator
Master Scan Oscillator (at 64 X fH)
Automatic Phase Control (APC) of Oscillator
Horizontal/Vertical Countdown
Vertical Output
Horizontal Drive Output (PulseWidth Modulator)

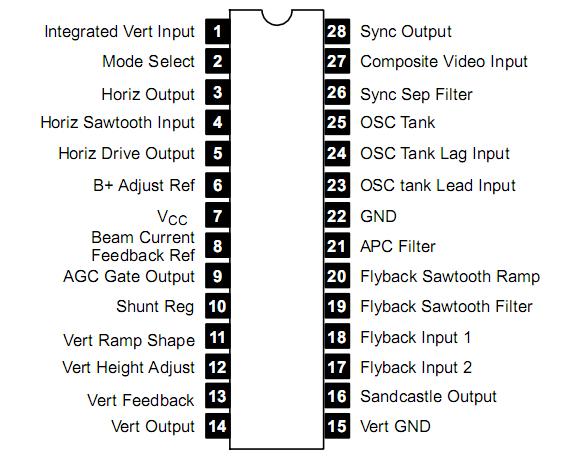

Pinout




Specifications

POWER SUPPLY:
Power Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 15V
Power Supply Current, I_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75mA
Injector Supply Voltage, V_INJ  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 1.75V
Injector Supply Current, I_INJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  150mA

INPUTS OUTPUTS:
AGC Gate (Pin 9) Source, I_EAGC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . 10mA
Composite Blanking (Pin 16) Sink, I_CBLNK  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 10mA
Horizontal Drive (Pin 5) Sink, I_CHD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Horizontal Output (Pin 3) Sink, I_CHO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . 30mA
Sync Separator Out (Pin 28), I_SYNC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . 30mA
Vertical Drive (Pin 14) Source, I_VERT  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA

DEVICE DISSIPATION:
Maximum Rated Junction Temperature, T_JMAX  . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . +150°C
Maximim Power Dissipation, P_D
         Up to T_A = +50°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .  1.1W
         Above T_A = +50°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Derate linearly at 11.1 mW/°C

AMBIENT TEMPERATURE RANGE:
Operating, T_OP  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +85°C
Storage, T_STG   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +150°C


LEAD TEMPERATURE (DURING SOLDERING):
At distance 1/16 ± 1/32 in. (1.59 ± 0.79mm) from case for 10s max.  . . . . . .. . . . . . . . . . . . . . +265°C


Description

The NTE874 is a monolithic bipolar/I²L integrated circuit digital sync system designed for use in con-sumer TV applications for color/monochrome receivers or monitors.  This device takes the composite video input signal in combination with the onchip masterscan oscillator to provide both horizontal drive and vertical deflection output signals.

Other onchip functions of NTE874 include sync separator, horizontal APC, horizontal/vertical countdown cir-cuitry, vertical ramp generator, and horizontal drive circuit (PulseWidth Modulator).

The NTE874 features dualmode operation and accepts either standard or nonstandard video sig-nals.  An automatic moderecognition system forces the operation into the asynchronous mode for nonstandard sync signals.

Intended for use with 525line systems, the NTE874 is supplied in the 28lead dualinline plastic package.
