NTE870

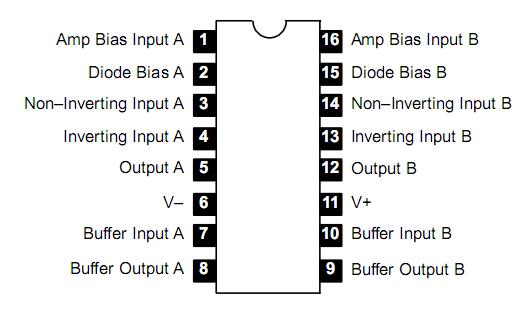

Pinout




Specifications

Supply Voltage, V+/ V  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .36V or ±18V
Differential Input Voltage, V_ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5V
Diode Bias Current, I_D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  2mA
Amp Bias Current, I_ABC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 2mA
Buffer Output Current, I_o  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 20mA
Power Dissipation, P_D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .. . . . . . . . . . . . . .570mW
DC Input Voltage, V_IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V+ to V
Operating Temperature Range, T_opr  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 20° to +75°C
Storage Temperature Range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 40° to +125°C


Description

The NTE870 consists of two current controlled transconductance amplifiers each with differential in-puts and a pushpull output.  The two amplifiers share common supplies but otherwise operate inde-pendently.  Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels resulting in a 10dB signaltonoise improvement referenced to 0.5 percent THD.  Controlled impedance buffers of NTE870 are provided which are especially designed to complement the dynamic range of the amplifiers.
