Product Details

Description



Features:

` User programmable gain bandwidth product, slew rate, input bias current, output stage biasing current and total device power dissipation.
` High gain bandwidth product (ISET = 0.5mA) 400MHZ for AV = 10 to 100 30MHZ for AV = 1
` Current differencing inputs allow high commonmode input voltages
` Operates from a single 5V to 22V supply
` Large inverting amplifier output swing, 2mV to VCC 2V
` Low spot noise, 6nV/Hz, for f > 1kHZ


Application

` General Purpose Video Amplifiers
` High Frequency, High Q Active Filters
` PhotoDiode Amplifiers
` Wide Frequency Range Waveform Generation Circuits
` AC Applications Work to much Higher Frequencies

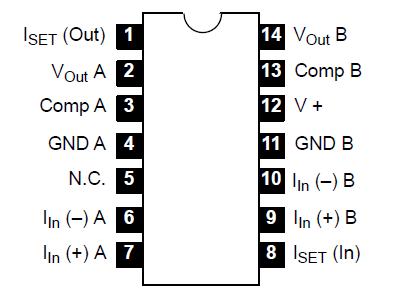

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 22V
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ±11V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .750mW
Input Currents, IIN(+) or IIN() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 10mA
Set Currents, ISET(IN) or ISET(OUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
Maximum Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+125
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0° to 70
Thermal Resistance, JunctiontoAmbient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160/W
Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300


Description

The NTE869 consists of two current differencing (Norton) input amplifiers. Emphasis has been placed on obtaining high frequency performance and providing user programmable amplifier operating characteristics. Each amplifier is broadbanded to provide a high gain bandwidth product, fast slew rate and stable operation for an Inverting closed loop gain of 10 or greater. Pins for additional external frequency compensation are provided. The amplifiers NTE869 are designed to operate from a single supply and can accommodate input commonmode voltages greater than the supply.
