Product Details

Description



Application

· Precision Waveform Generation: Sine, Triangle, Square, Pulse
· Sweep and FM Generation
· Tone Generation
· Instrumentation and Test Equipment Design
· Precision PLL Design

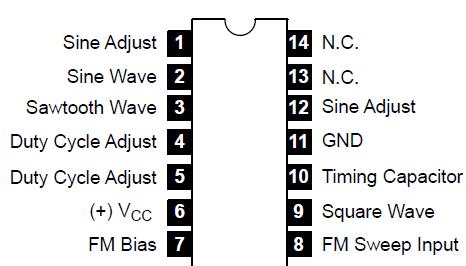

Pinout

Connection Diagram


Specifications

Power Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  36V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Derate Above +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mW/
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70


Description

The NTE864 is a precision waveform generator in a 14Lead DIP type package capable of producing sine, square, triangular, sawtooth and pulse waveform. Its operating frequency can be selected over eight decades of frequency, from 0.001Hz to 200kHz. The frequency of oscillation is highly stable over a wide range of temperature and supply voltage changes. Both full frequency sweeping as well as smaller frequency variations (FM) can be accomplished with an external control voltage. Each of the three basic waveforms, i.e., sinewave, triangle and square wave outputs of NTE864 are available simultaneously, from independent output terminals.
