NTE863

Features: · High Output Current (50 mA max)· Output Sink Current or Drive Current Capability· Output Disable ControlApplication· Comparator· Switching and Gating Control· Pulse Width Modulator· TV Horizontal Drive AmplifierPinoutSpecificationsDC Supply Voltage, V1, V5 . . . . . . . . . . . . . . ....

product image

NTE863 Picture
See larger image
SeekIC No. : 004436520 Detail

NTE863: Features: · High Output Current (50 mA max)· Output Sink Current or Drive Current Capability· Output Disable ControlApplication· Comparator· Switching and Gating Control· Pulse Width Modulator· TV H...

NTE863 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE863
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High Output Current (50 mA max)
· Output Sink Current or Drive Current Capability
· Output Disable Control


Application

· Comparator
· Switching and Gating Control
· Pulse Width Modulator
· TV Horizontal Drive Amplifier

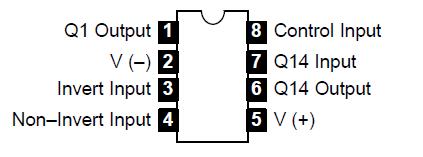

Pinout

Connection Diagram


Specifications

DC Supply Voltage, V1, V5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15V
Input Current, I3, I4, I7, I8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1mA
Output Current, I1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Output Current, I6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Device Dissipation (TA +25, Including Q14), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Derate Linearly Above 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mW/
Q14 Dissipation (TA +25), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150mW
Derate Linearly Above 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2mW/
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° To +150
Lead Temperature (During Soldering, 1/16" from case, 10sec max), TL . . . . . . . . . . . . . . . . . +265


Description

The NTE863 is a multiplecontrol amplifier/comparator monolithic integrated circuit in an 8Lead DIP type package intended for use in general purpose applications requiring comparator functions wiht logic override switching and control. An opamp with differential inputs drives an output transistor with high current capability. An isolated transistor NTE863 is also available for optional use.
