NTE856

Features: ` Single 5V Supply` Channel 3 or 4 Operation` Excellent Oscillator Stability to 100MHz` Color and Sound Compatibility` Dual Input Modulator for Ease of Signal` Low Intermodulation (50dB 920kHz Beat)` Overmodulation ProtectionPinoutSpecificationsSupply Voltage . . . . . . . . . . . . . . ...

product image

NTE856 Picture
See larger image
SeekIC No. : 004436511 Detail

NTE856: Features: ` Single 5V Supply` Channel 3 or 4 Operation` Excellent Oscillator Stability to 100MHz` Color and Sound Compatibility` Dual Input Modulator for Ease of Signal` Low Intermodulation (50dB 92...

NTE856 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE856
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Single 5V Supply
` Channel 3 or 4 Operation
` Excellent Oscillator Stability to 100MHz
` Color and Sound Compatibility
` Dual Input Modulator for Ease of Signal
` Low Intermodulation (50dB 920kHz Beat)
` Overmodulation Protection


Pinout

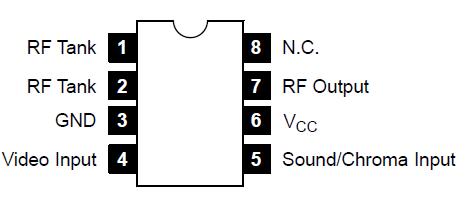

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 8V
Power Dissipation Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.25W
Derate above 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13mW/
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Operating Ambient Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150


Description

The NTE856 is an RF oscillator and dualinput modulator in an 8Lead DIP type package designed to generate a TV signal from baseband video inputs. Typical applications include video games, home computer display, video recorders, and test equipment.

The very low level of intermodulation products NTE856, compact package and small external component count make this device superior to simple discrete circuits.
