Product Details

Description



Features:

 PLL Carrier Oscillator with Wide PullIn and HoldIn Range
Excellent LowLevel Detector Linearity
Noise Inversion at Video Output
Wide Range, Variable ZeroCarrier Level Adjustment
Automatic Fine Tuning (AFT) Detector
Separate Output for Sound TakeOff
 12V Power Supply

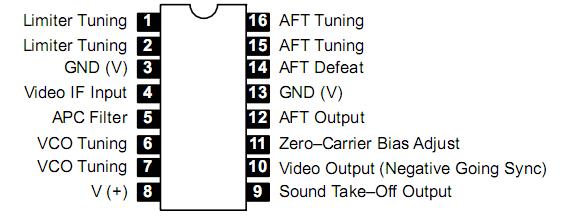

Pinout

Connection Diagram


Specifications

Power Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Power Supply Current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Input Signal Voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Vrms
Device Dissipation (Up to TA = +45°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 1.4W
           Derate  Above TA = +45°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .  . . 13.3mW/°C
Thermal Resistance, JunctiontoAmbient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75°C/W
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 40° to +85°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 65° to +150°C
Lead Temperature (During Soldering, 1/16" from case, 10sec max), TL . . . . . . . . . . . . . . .  +265°C


Description

The NTE843 is a linear IC synchronous detector employing a phaselocked oscillator to demodulate the 45.75MHz video IF signals in colorTV receivers.  The NTE843 features AFT voltage for DC con-trol of the tuner; an adjustment for the zerocarrier DC level at the video output terminal; an amplifier  arrangement for inverting noise impulses toward the black level; and a separate output terminal (noninverting) for the sound IF.

The NTE843 is supplied in a 16lead plastic "powerslab" dualinline package.

The "powerslab" package of NTE843 has an inherently low junctiontocase (slab) thermal resistance and lends itself to a wide variety of heatsink methods, depending on the application requirements.
