NTE842

Features:

HighGain WideBand IF Amplifiers
SampleandHold Keyed AGC
Composite Sync Separator with Noise Immunity
Fast AGC using PIN Diodes
Gain Reduction with Excellent Stability
Internal Varactor Pole Shift at Max Gain

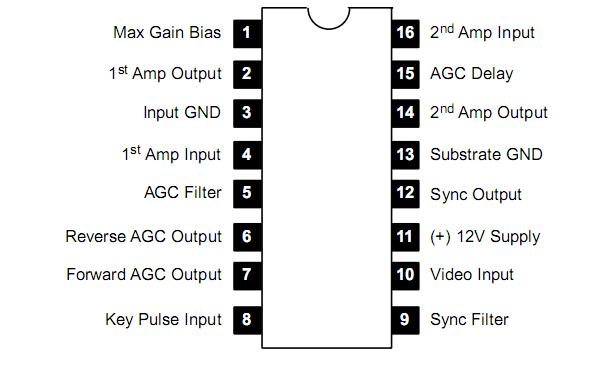

Pinout




Specifications

DC Supply Voltage, V_CC
Between Pin11 and Pin3, Pin13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . 14V
Between 24K connected to Pin6 and Pin3, Pin13  . . . . . . . . . . . . . . . . . . . . .  . . . .  . . . . . . . . . . . . . 25V
DC Supply Current, I_C
          At Pin1 + Pin2 + Pin11 + Pin14 at Max. Gain . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . 60mA
          At Pin (Open Collector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
Device Dissipation (TA +55°C), P_D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 750mW
          Derate Above +55°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .  7.9mW/°C
Operating Ambient Temperature Range, T_opr. . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .  40° to +85°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .  65° to +150°C
Lead Temperature (During Soldering, 1/16" from case, 10sec max), T_L  . . . . . . .  . . .  . . . . . . . +265°C


Description

The NTE842 is a monolithic silicon integrated circuit in a 16Lead DIP type package designed to per-form IF amplification, tuner AGC, and composite syncseparation functions in color or monochrome TV receivers.

PIN diodes NTE842 are used in the IF amplifiers for gain control, resulting in increased dynamic range and better signaltonoise ratio.
