Product Details

Description



Features:

` Internal Shunt Regulator
` Preset Hold Control Capability
` ± 300Hz Typical PullIn
` Linear Balanced Phase Detector
` Variable Output Duty Cycle for Driving Tube or Transistor
` Low Thermal Frequency Drift
` Small Static Phase Error
` Adjustable DC Loop Gain
` Negative Flyback Inputs


Pinout

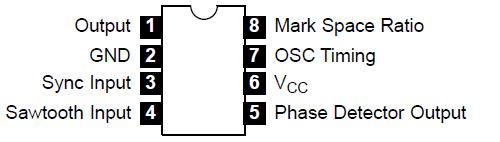

Connection Diagram


Specifications

Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30mA
Sync Input Voltage (Pin3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0V(pp)
Flyback Input Voltage (Pin4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0V(pp)
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625mW
Derate above TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0mW/
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +75
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150


Description

The NTE836 is a TV Horizontal Processor in an 8Lead DIP type package that includes a phase detector, oscillator and predriver. This NTE836 is designed for use in all types of television receivers that have negative flyback inputs.
