NTE832

Features: ` Logic Compatible Output with 100mA Current Sinking Capability` Bandwidth Adjustment from 0 to 14%` Inherent Immunity to False Signals` High Stable Center Frequency` High Rejection of OutOfBand Signals and Noise` Center Frequency Adjustable from 0.01Hz to 500kHz` Frequecny Range Adjusta...

product image

NTE832 Picture
See larger image
SeekIC No. : 004436496 Detail

NTE832: Features: ` Logic Compatible Output with 100mA Current Sinking Capability` Bandwidth Adjustment from 0 to 14%` Inherent Immunity to False Signals` High Stable Center Frequency` High Rejection of Out...

NTE832 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE832
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Logic Compatible Output with 100mA Current Sinking Capability
` Bandwidth Adjustment from 0 to 14%
` Inherent Immunity to False Signals
` High Stable Center Frequency
` High Rejection of OutOfBand Signals and Noise
` Center Frequency Adjustable from 0.01Hz to 500kHz
` Frequecny Range Adjustable over 20:1 range by an External Resistor
` Available in Standard 8Lead DIP (NTE832) and Surface Mount SOIC8 (NTE832SM)


Application

· Touch Tone Decoder
· Precision Oscillator
· Frequency Monitoring and Control
· Wide Band FSK Demodulation
· Communications Paging Decoders
· Carrier Current Remote Controls
· Ultrasonic Controls (Remote TV, etc.)


Pinout

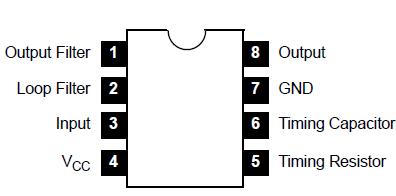

Connection Diagram


Specifications

Operating Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  10V to VCC +0.5V
Output Voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Power Dissipation (Note 1), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° to +150
Note 1. The maximum junction temperature of these devices is +100°C. For operating at elevated temperatures, devices must be derated on a thermal resistance of +187/W, junctiontoambient.


Description

The NTE832 and NTE832SM are general purpose tone decoders designed to provide a saturated transistor switch to GND when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components of NTE832 are used to independently set center frequency, bandwidth, and output delay.
