NTE828

Features: ` Minimum External Parts` Wide Supply Voltage Range` Ground Referenced Input` Excellent Supply Rejection` Variable Voltage Gain` SelfCentering Output Quiescent Voltage` Low Distortion`Low Voltage Operation, 4VApplication` AMFM Radio Amplifiers` Intercoms` TV Sound Systems` Portable Tape ...

product image

NTE828 Picture
See larger image
SeekIC No. : 004436494 Detail

NTE828: Features: ` Minimum External Parts` Wide Supply Voltage Range` Ground Referenced Input` Excellent Supply Rejection` Variable Voltage Gain` SelfCentering Output Quiescent Voltage` Low Distortion`Low ...

NTE828 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE828
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Minimum External Parts
` Wide Supply Voltage Range
` Ground Referenced Input
` Excellent Supply Rejection
` Variable Voltage Gain
` SelfCentering Output Quiescent Voltage
` Low Distortion
`Low Voltage Operation, 4V


Application

` AMFM Radio Amplifiers
` Intercoms
` TV Sound Systems
` Portable Tape Player Amplifiers
` Power Converters
` Lamp Drivers
` Ultrasonic Drivers
` Line Drivers
` Small Servo Drivers


Pinout

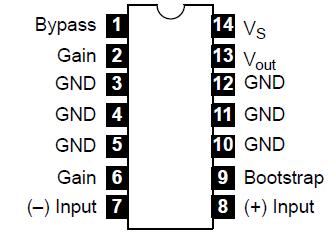

Connection Diagram


Specifications

Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 22V
Package Dissipation (Note 1), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 8.3W
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.4V
Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150
Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1 Pin3, Pin4, Pin5, Pin10, Pin11, and Pin12 at +25. Derate at 15/W above +25 case.


Description

The NTE828 is an audio amplifier in a 14Lead DIP type package designed for use in medium power consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between Pin2 and Pin6 will increase the gain to any value up to 200.

The inputs of NTE828 are ground referenced while the output is automatically biased to one half the supply voltage.
