NTE826

Features: · Minimum Undistorted Output: 2W· Linear Volume Control: 75dB range· Fixed Voltage Gain in Audio Amplifier· Short Circuit and Thermal ProtectionPinoutSpecificationsSupply Voltage (Pin2), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

NTE826 Picture
See larger image
SeekIC No. : 004436493 Detail

NTE826: Features: · Minimum Undistorted Output: 2W· Linear Volume Control: 75dB range· Fixed Voltage Gain in Audio Amplifier· Short Circuit and Thermal ProtectionPinoutSpecificationsSupply Voltage (Pin2), V...

NTE826 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE826
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Minimum Undistorted Output: 2W
· Linear Volume Control: 75dB range
· Fixed Voltage Gain in Audio Amplifier
· Short Circuit and Thermal Protection


Pinout

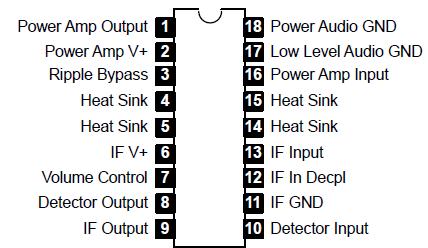

Connection Diagram


Specifications

Supply Voltage (Pin2), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 26V
Input Current (Pin6), IMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  50mA
Input Signal Voltage (Between Pin12 and Pin13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  3Vpp
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Maximum Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150
Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300


Description

The NTE826 2W sound IF circuit is designed for television and related applications. The circuit is comprised of 2 independent functions: a sound IF and an audio power amplifier. The sound IF portion of the circuit NTE826 utilizes circuitry similar to the NTE712. An improved volume control circuit is included, however, so that recovered audio is a linear function of the resistance of the control potentiometer.

Audio power amplification of NTE826  is accomplished with circuitry similar to the popular NTE740A audio power amplifier, featuring both short circuit and thermal protection.
